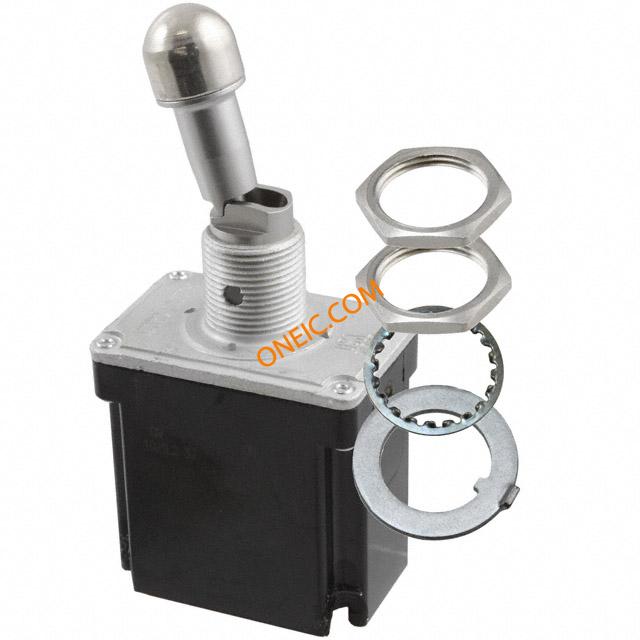

102TL2-3G
| 制造商 | |
| 描述 | Toggle Switches Toggle SW DPDT 2pos IWTS 16-20 Gage term MICRO SWITCH™ Electromechanical Switches, MICRO SWITCH™ Toggle Switches SWITCH TOGGLE DPDT 7.5A 115V Switch Toggle ON ON DPDT Locking Lever IWTS 7.5A 230VAC 250VDC Panel Mount with Threads Switch Toggle ON ON DPDT Locking Lever IWTS 7.5A 230VAC 250VDC Panel Mount with Threads Product Highlights:Qualified to MIL-S-3950Environment-proof sealing1,2, and 4 pole circuitryStandard and pull-to-unlock levers2 and 3 position, maintained and momentary toggle actionTemperature range: -85�F to +160�F Completely sealed switching chamberStep-design case provides added space between terminals to help prevent shortingUL recognized, CSA certifiedCE approvedPotential Applications:Industrial machinery and equipmentMilitary and commercial aviationConstruction equipmentTest instrumentsAgricultural machineryProcess controlMedical instrumentation SealedOperatorControls TL Series Toggle Switch, 2 pole, 2 position, IWTS (16-20 Gage) terminal, Locking Lever, Military Part Number MS27788-23G |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 交货时间 | 98 Days | 子类别 | Switch Toggle |
| 零件号别名 | MS27788-23G | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | 标准编号 | Locking |
| 认证机构标志 | L191: 15 A-125, 250, 277 Vac; 1/2 Hp-125 Vac; 1 Hp-250, 277 Vac; 5 A-120 Vac "L" | ||
电气参数
| 电路 | DPDT | 操作方式 | 124009 |
| 额定电压 | 277 V | 开关功能 | On-On |
| 供电电压 | 0.5 A at 250 Vdc|0.5 A to 7.5 A at 0.5 Vdc to 28 Vdc|0.5 A to 6 A at 0.5 Vac to 230 Vac|0.75 A at 115 Vdc | 最大额定电流 | 20 A |
| 最大持续工作电压（MCOV） | 0.5 A at 250 Vdc|0.5 A to 7.5 A at 0.5 Vdc to 28 Vdc|0.5 A to 6 A at 0.5 Vac to | ||
机械参数
| 包装方式 | Bulk | 端接方式 | IWTS (16-20 Gage) |
| 触点形式 | DPDT | 致动器类型 | Lever |
| 安装类型 | Bushing 15/32 in | 衬套螺纹 | 15/32-32 |
| 接触镀层 | Silver Cadmium Oxide | 安装样式 | Panel |
| 执行器长度 | 26.67mm | 锁定特性 | 124010 |
| 执行器材料 | Nickel Plated | 端接样式 | Wire |
| 衬套/护套类型 | 15/32-32 | 面板开孔尺寸（外形） | Circular - 12.40mm Dia |
产品信息
| 备注 | Silver cadmium oxide contacts | 系列 | TL |
| 功能 | 2 position | 电路结构 | DPDT |
| UNSPSC代码 | 30211908 | 照明类型 | Non-Illuminated |
| 产品子类型 | MICRO SWITCH⢠Toggle Switch | 行业别名 | 5930010534072, MS27788-23G |
| UNSPSC商品 | 30211908 Toggle switches | 设备部件号 | MS27788-23G |
环境参数
| 密封等级 | Sealed | 防护等级 | Environment Proof |
| 工作温度 | -65°C ~ 71°C | ||
