点击放大查看

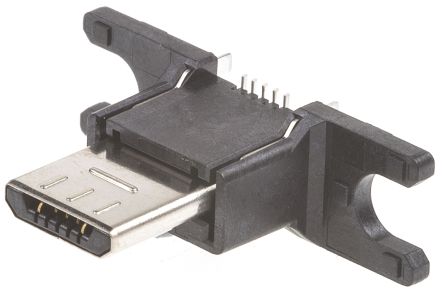

ZX80-B-5SA
| 制造商 | |
| 描述 | USB Connectors MICRO B PLUG ASBY CRDLE V TH W/O LOK CONN PLUG MCR USB B PCB VERT Micro-B Plug,Vert,Cradle mount,no lock MICRO-BPLUG,VERT,NOLOCK Hirose ZX系列 直向 SMT安装 公 micro USB 连接器 B型 v2, 30 V 交流, 1A |
| 分类 |
商业参数
| 产品 | Micro USB Type B Connectors | 产品类别 | USB Connectors |
| 标准包装数量 | 100 | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 30 V ac | 供电电压 | USB |
| 最大额定电流 | 1 A | ||
机械参数
| 包装方式 | Bag | 方向 | 直 |
| 端接方式 | Solder | 安装类型 | Vertical |
| 连接器类型 | Micro USB Type B Plug | 接触镀层 | Gold |
| 安装样式 | Cradle | 触头材料 | Copper Alloy |
| 端接排数 | 焊接 | 端接样式 | SMD/SMT |
| 触点数 | 5 | ||
产品信息
| USB | B | 连接器性别 | Female |
| 系列 | ZX | 产品特性 | Plug Assembly without Lock |
| 规格说明 | USB 2.0 | 端口数 | 1 |
环境参数
| 工作温度 | - 30 C to + 85 C | ||
