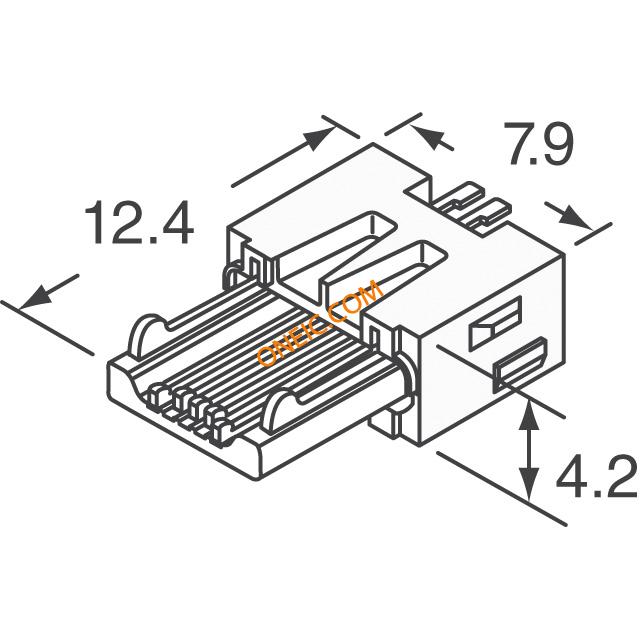

点击放大查看

ZX40-A-5S-UNIT

制造商	Hirose Electric Co., Ltd.
描述	USB Connectors MICRO A PLUG ASBY SOLDER CABLE CONN PLUG MICRO USB A Conn Micro USB Type A PL 5 POS Solder ST Cable Mount 5 Terminal 1 Port
分类	连接器解决方案USB、DVI、HDMI连接器USB连接器与控制器

对参数有疑问？问 AI 助手

商业参数

产品	Micro USB Type A Connectors	产品类别	USB Connectors
标准包装数量	200	工厂包装数量	1

合规参数

RoHS

RoHS Compliant

材料阻燃等级

UL 94 V-0

电气参数

供电电压	USB	最大额定电流	1 A
最小供电电压	30VAC

机械参数

高度	4.2 mm	包装方式	Bulk
端接方式	Solder	安装类型	Free Hanging (In-Line)
连接器类型	Micro USB Type A Plug	接触镀层	Gold
安装样式	Direct	触头材料	Copper Alloy
壳体材料	Synthetic Resin	总长度	7.9 mm
端接样式	Wire	触点数	5

产品信息

连接器性别	Female	系列	ZX40
已删除	Compliant	产品特性	Plug Assembly
规格说明	USB 2.0	端口数	1

环境参数

工作温度

- 30 C to + 85 C

结工作温度

85C

文档与媒体

PDF 文档

ZX40-A-5S-UNIT Drawing

PDF 文档

ZX Series

PDF 文档

e24200011-37133.pdf
