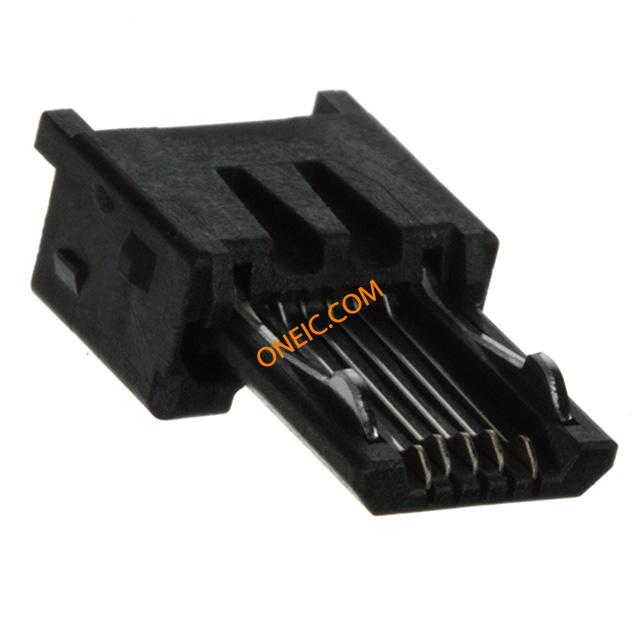

ZX10-B-5S-UNIT(12)
| 制造商 | |
| 描述 | USB Connectors MICRO B PLUG ASBY RA PCB CONN PLUG 5PS MICRO B USB RA SMD |
| 分类 |
商业参数
| 产品 | Micro USB Type B Connectors | 其他名称 | H11673TR |
| 产品类别 | USB Connectors | 标准包装数量 | 1,500 |
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 供电电压 | USB | 最大额定电流 | 1 A |
机械参数
| 包装方式 | Reel | 安装类型 | Right |
| 连接器类型 | Micro USB Type B Plug | 接触镀层 | Gold |
| 安装样式 | Wire | 触头材料 | Copper Alloy |
| 端接样式 | Wire | 触点数 | 5 |
产品信息
| 连接器性别 | Female | 产品特性 | Plug Assembly |
| 规格说明 | USB 2.0 | 端口数 | 1 |
环境参数
| 机械寿命 | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | 工作温度 | - 30 C to + 85 C |
