点击放大查看

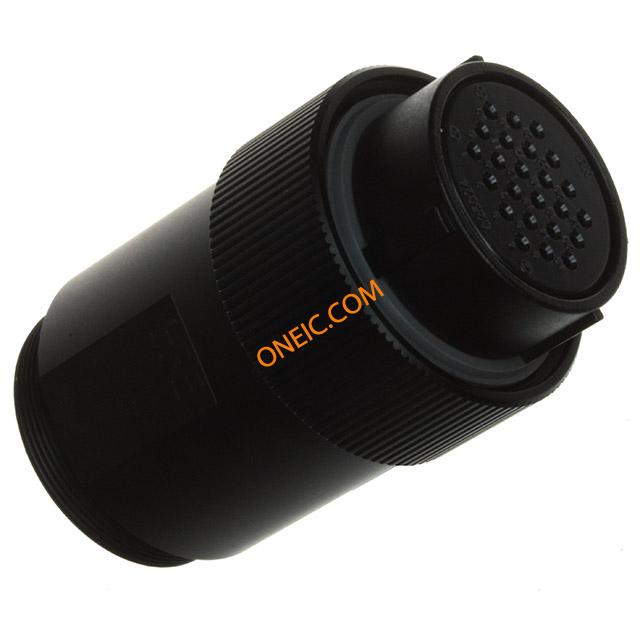

JR25WP-24S(71)

制造商	Hirose Electric Co., Ltd.
描述	Standard Circular Connector PLUG IP67 24POS FEM CONN PLUG WATERPROOF 24POS FMALE Conn High Performance Waterproof F 24 POS Solder ST Cable Mount 24 Terminal 1 Port
分类	连接器解决方案圆形连接器标准圆形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

工厂包装数量

合规参数

RoHS

RoHS Compliant

抗辐射加固

电气参数

额定电压

100VAC, 140VDC

最大额定电流

机械参数

直径	33.8 mm	包装方式	Bulk
出线方向	No	外壳尺寸	25
方向	Keyed	外壳样式	Plug
端接方式	Solder Cup	触点形式	24Signal
安装类型	Free Hanging (In-Line)	外壳镀层	Chromium
连接器类型	Plug, Female Sockets	接触镀层	Silver
紧固类型	Threaded	安装样式	Free Hanging
外壳材料（壳体）	Metal	触头材料	Copper Alloy
总长度	56 mm	端接样式	Solder
第一触头极性	Socket (Female)	触点数	24
位数	24	外壳尺寸-插件	25
外壳材料及表面处理	Aluminum, Brass and Zinc Alloy, Black Chrome Plated

产品信息

连接器性别	PL	系列	JR-W
已删除	Compliant	产品子类型	Connectors
射频系列/标准	JR	输出配置	Free Hanging (In-Line)

环境参数

防护等级

IP67 - Dust Tight, Waterproof

工作温度

-25°C ~ 85°C

文档与媒体

PDF 文档

JR Series, JR-W Connector

PDF 文档

e11420015.pdf

相关型号

JR25WCC-12(72)

Hirose Connector

Standard Circular Connector STANDARD CABLE CLAMP WATER-PROOF CIRC CON CONN CABLE CLAMP 12MM Hirose Black Aluminium Alloy Clamp, 12mm Bundle Diameter, 31 Dia. x 18mm CableClampfor12mmcable Hirose 黑色铝合金夹子, 12mm 捆束直径

¥88.8760

详情

JR25WCC-12(71)

Hirose Connector

Cable Mounting & Accessories STRAIN RELIEF JR25 12MM CONN CABLE CLAMP 12MM

¥88.8746

详情

JR25WCC-14(71)

Hirose Connector

Cable Mounting & Accessories STRAIN RELIEF JR25 14MM CONN CABLE CLAMP 14MM

¥88.4088

详情

JR25WCCA-8(71)

Hirose Connector

Cable Mounting & Accessories STRN RELIEF JR25 8P CONN STRAIN RELIEF JR25 8MM

¥36.6520

详情

JR25WCC-18(71)

Hirose Connector

Cable Mounting & Accessories STRAIN RELIEF JR25 18MM CONN CABLE CLAMP 18MM

¥104.3168

详情

JR25WCCA-10(71)

Hirose Connector

Cable Mounting & Accessories STRN RELIEF JR25 10P CONN STRAIN RELIEF JR25 10MM

¥36.8560

详情

JR25WCCA-18(71)

Hirose Connector

Cable Mounting & Accessories STRN RELIEF JR25 18P CONN STRAIN RELIEF JR25 18MM

¥90.4128

详情

JR25WCCA-12(71)

Hirose Connector

Cable Mounting & Accessories STRN RELIEF JR25 12P CONN STRAIN RELIEF JR25 12MM

¥36.8560

详情

JR25WCCA-16(71)

Hirose Connector

Cable Mounting & Accessories STRN RELIEF JR25 16P CONN STRAIN RELIEF JR25 16MM

¥40.3104

详情

JR25WCCA-14(71)

Hirose Connector

Cable Mounting & Accessories STRN RELIEF JR25 14P CONN STRAIN RELIEF JR25 14MM

¥36.8560

详情

JR25WCC-10(71)

Hirose Connector

Standard Circular Connector STRAIN RELIEF JR25 10MM CONN CABLE CLAMP 10MM Connector Accessories Clamp

¥78.4720

详情

JR25WR-24P(71)

Hirose Connector

Standard Circular Connector RCPT IP67 24POS MALE CONN RCPT WATERPROOF 24POS MALE

¥65.5928

详情

JR25WCC-8(72)

Hirose Connector

Standard Circular Connector STANDARD CABLE CLAMP WATER-PROOF CIRC CON CONN CABLE CLAMP 8MM Hirose Black Aluminium Alloy Clamp, 8mm Bundle Diameter, 31 Dia. x 18mm CableClampfor8mmcable Hirose 黑色铝合金夹子, 8mm 捆束直径

¥117.9800

详情

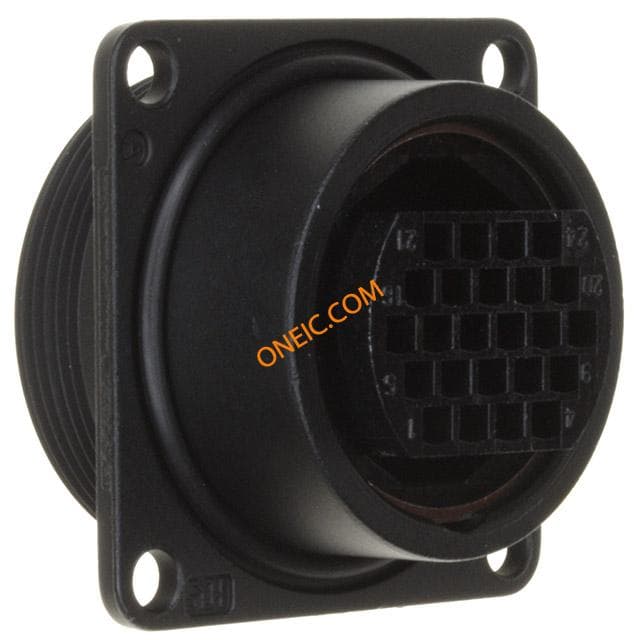

JR25WR-24PC(71)
