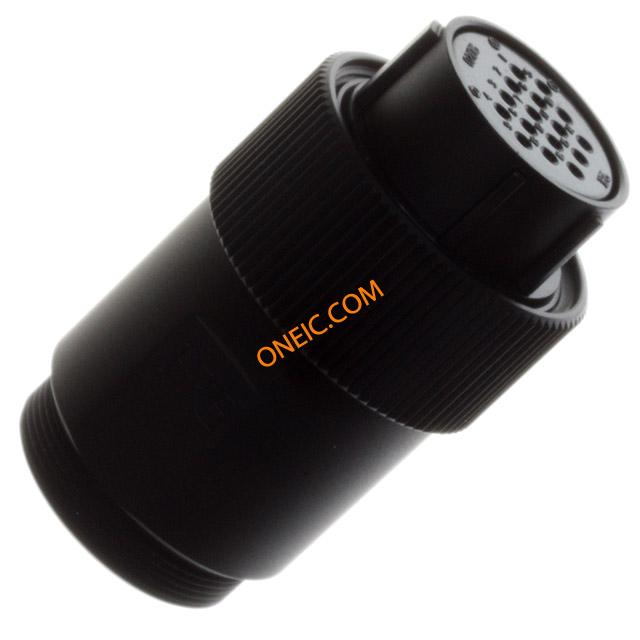

JR21WP-16S(71)
| 制造商 | |
| 描述 | Standard Circular Connector PLUG IP67 16POS FEM CONN PLUG WATERPROOF 16POS FMALE |
| 分类 |
商业参数
| 标准包装数量 | 10 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 100VAC, 140VDC | 最大额定电流 | 5A |
机械参数
| 包装方式 | Bulk | 外壳尺寸 | 21 |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Solder Cup | 安装类型 | Free Hanging (In-Line) |
| 外壳镀层 | Chromium | 连接器类型 | Plug, Female Sockets |
| 接触镀层 | Silver | 紧固类型 | Threaded |
| 安装样式 | Free Hanging | 外壳材料（壳体） | Metal |
| 端接样式 | Solder | 第一触头极性 | Socket (Female) |
| 触点数 | 16 | 位数 | 16 |
| 外壳尺寸-插件 | 21 | 外壳材料及表面处理 | Aluminum, Brass and Zinc Alloy, Black Chrome Plated |
产品信息
| 系列 | JR-W | 产品子类型 | Connectors |
环境参数
| 防护等级 | IP67 - Dust Tight, Waterproof | 工作温度 | -25°C ~ 85°C |
