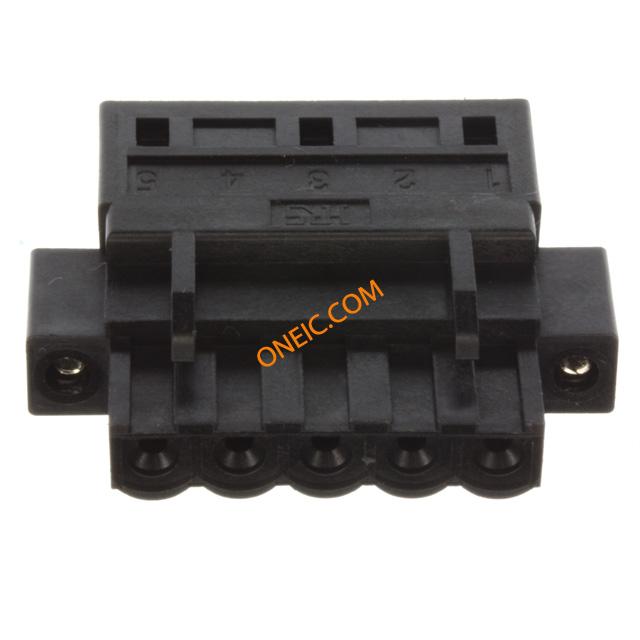

HR31-5.08P-5SC(71)
| 制造商 | Hirose Electric Co., Ltd. |
| 描述 | Headers & Wire Housings HSNG 5P 5.08MM CRIMP CONN HOUSING 5POS 5.08MM CRIMP |
| 分类 |
商业参数
| 标准包装数量 | 25 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250 V, 350 V | 最大额定电流 | 12 A, 10 A |
| 绝缘电阻 | 1000 MOhms | ||
机械参数
| 颜色 | Black | 间距 | 0.200" (5.08mm) |
| 包装方式 | Bulk | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug |
| 接触镀层 | Nickel | 紧固类型 | Screw Lock |
| 排数 | 1 | 触头材料 | Steel |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 第一触头极性 | Pin (Male) |
| 触点数 | 5 | 接触件端接 | Crimp |
| 位数 | 5 | ||
产品信息
| 备注 | Contacts Not Provided | 系列 | HR31 |
| 产品子类型 | Plugs - Housings | ||
环境参数
| 工作温度 | - 40 C to + 100 C | ||
