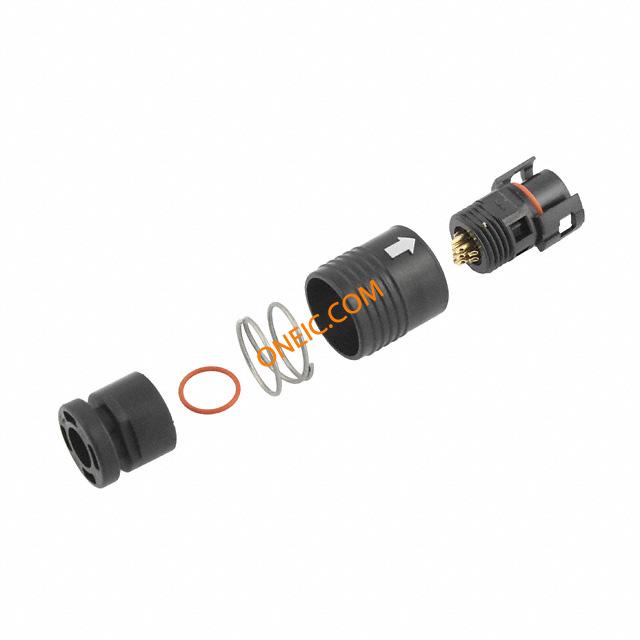

HR30-8PB-12P

制造商	Hirose Electric Co., Ltd.
描述	Circular Push Pull Connectors 12P PLG SHELL SZ 8 MALE W/OVERMOLD SPCR CONN PLUG 12POS MALE SOLDER
分类	连接器解决方案圆形连接器工业圆形连接器（扩展）

对参数有疑问？问 AI 助手

商业参数

产品类别

Circular Push Pull Connectors

标准包装数量

合规参数

RoHS

RoHS Compliant

电气参数

额定电压

30VAC, 42VDC

最大额定电流

机械参数

包装方式	Tray	外壳尺寸	8
方向	Keyed	外壳样式	Plug
端接方式	Solder Cup	安装类型	Free Hanging (In-Line)
连接器类型	Plug, Male Pins	接触镀层	Gold
紧固类型	Push-Pull	安装样式	Cable
外壳材料（壳体）	Plastic	端接样式	Solder
第一触头极性	Pin (Male)	触点数	12
位数	12	外壳尺寸-插件	8
外壳材料及表面处理	Polyphenylene Sulfide (PPS)

产品信息

系列	HR30	产品特性	Strain Relief
产品子类型	Connectors

环境参数

防护等级

IP67 - Dust Tight, Waterproof

工作温度

-25°C ~ 85°C

文档与媒体

PDF 文档

HR30 Overmold Wiring Procedure

PDF 文档

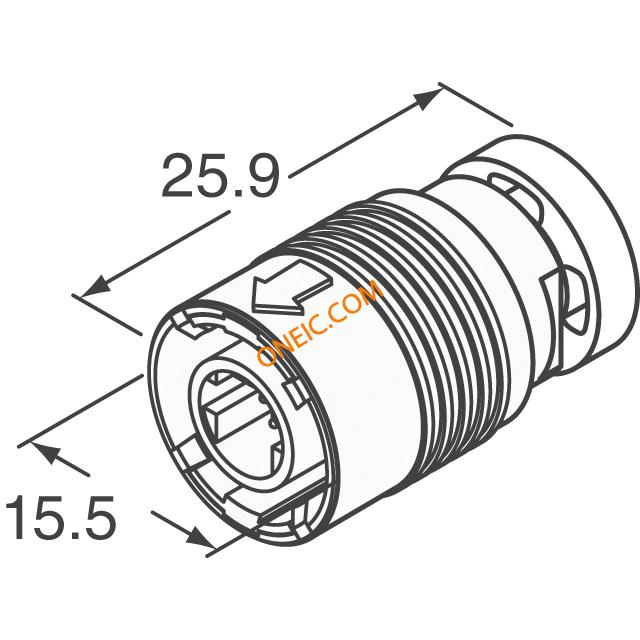

HR30-8PB-12P Drawing

PDF 文档

HR30%20Overmold.pdf

相关型号

HR30-8R-12SD(71)

Hirose Connector

Circular Push Pull Connectors 12P REC SHELL SZ 8 FEMALE PCB TH-HOLE CONN RECEPT 12POS FEMALE T/H Hirose HR30 Series 12 Way Straight Female Through Hole Miniature Connector, 2A Hirose HR30系列 12路直向通孔插座, 2A

¥34.0340

详情

HR30-8J-12S(71)

Hirose Connector

Circular Push Pull Connectors 12P JACK SHELL SZ 8 FEMALE TERM SOLDER CONN JACK 12POS FEMALE SOLDER Hirose HR30 Series 12 Way Straight Female Cable Mount Miniature Connector, 2A Hirose HR30系列 12路直向电缆安装插座, 2A

¥45.3000

详情

HR30-8R-12SC(71)

Hirose Connector

Circular Push Pull Connectors 12P RECP SHELL SZ 8 FEMALE CRIMP CONN RECEPT 12POS FEMALE CRIMP Hirose HR30 Series 12 Way Straight Female Panel Mount Miniature Connector, 2A Hirose HR30系列 12路直向面板安装插座, 2A

¥17.3400

详情

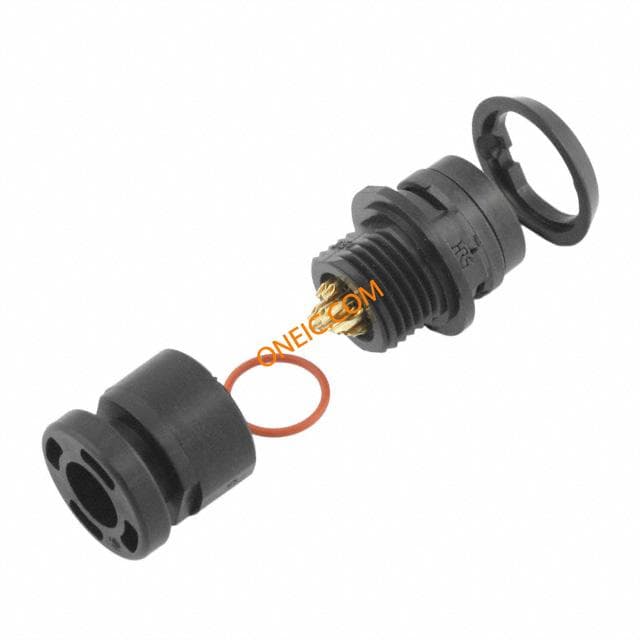

HR30-8JB-12S
