点击放大查看

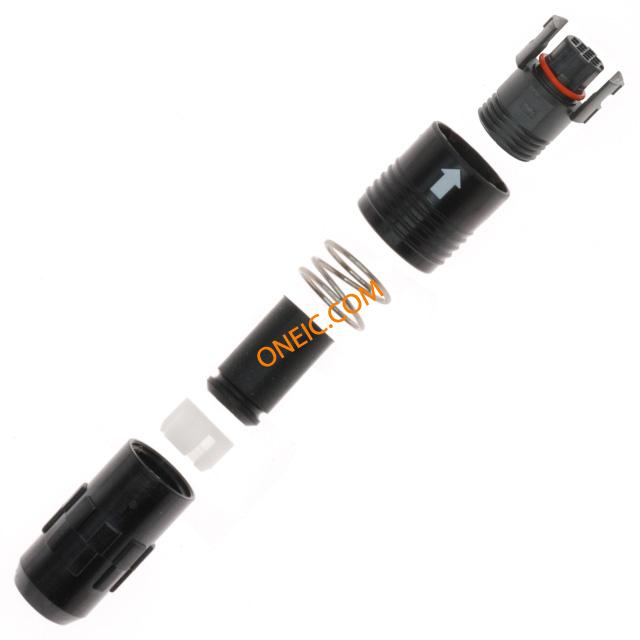

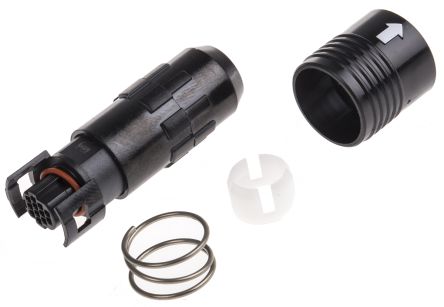

HR30-7P-12SC(71)

制造商	Hirose Electric Co., Ltd.
描述	Circular Push Pull Connectors 12P PLUG SHELL SZ 7 FEMALE CRIMP CONN PLUG 12POS FEMALE CRIMP Hirose HR30 Series 12 Way Straight Male Cable Mount Miniature Connector, 2A Hirose HR30系列 12路直向电缆安装插座, 2A
分类	连接器解决方案圆形连接器工业圆形连接器（扩展）

对参数有疑问？问 AI 助手

商业参数

产品类别	Circular Push Pull Connectors	标准包装数量	50
工厂包装数量	1

合规参数

RoHS

Compliant

电气参数

额定电压

30 V ac

最大额定电流

机械参数

包装方式	Tray	外壳尺寸	7
方向	Keyed	外壳样式	Plug
端接方式	Crimp	触点形式	Crimp
触头类型	Crimp	安装类型	Free Hanging (In-Line)
外壳镀层	Gold	连接器类型	Plug for Female Contacts
接触镀层	Gold	紧固类型	Push-Pull
安装样式	Cable	外壳材料（壳体）	Plastic
触头材料	Brass, Phosphor Bronze	端接排数	压接
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	12	位数	12
外壳尺寸-插件	7	外壳材料及表面处理	Polyphenylene Sulfide (PPS)

产品信息

备注	Contacts Not Provided	连接器性别	Male
系列	HR30	产品特性	Strain Relief
主要用途	Strain Relief	产品子类型	Connectors
输出配置	Free Hanging (In-Line)

环境参数

防护等级

IP68 - Dust Tight, Waterproof

工作温度

+85°C

文档与媒体

PDF 文档

e13000041.pdf
