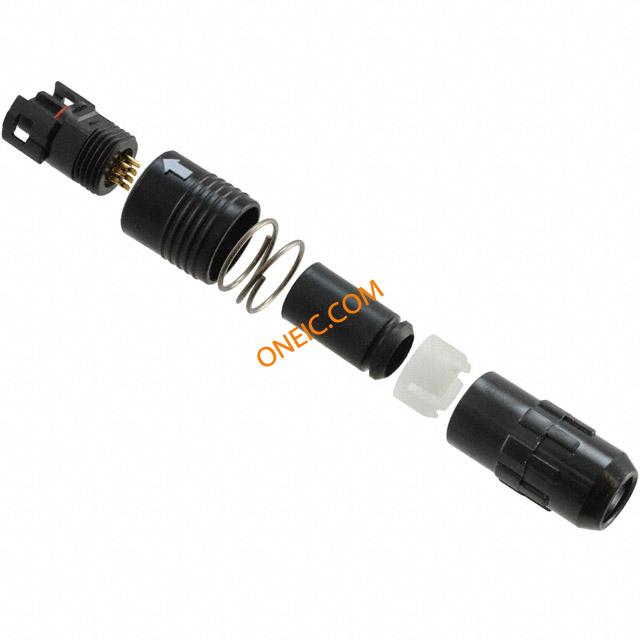

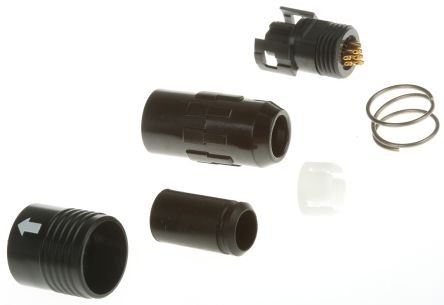

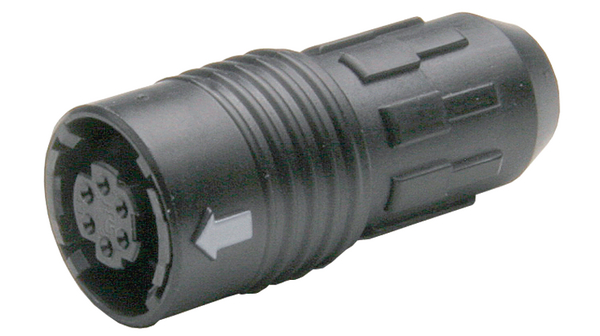

HR30-7P-12S(71)

制造商	Hirose Electric Co., Ltd.
描述	Circular Push Pull Connectors 12P PLUG SHELL SZ 7 FEMALE TERM SOLDER CONN PLUG 12POS FEMALE SOLDER Hirose HR30 Series 12 Way Straight Male Cable Mount Miniature Connector, 2A Conn Miniature Waterproof Plastic F 12 POS Solder ST Cable Mount 12 Terminal 1 Port Cable socket 12-pin Poles=12, HR30-7P-12S(71), Hirose Hirose HR30系列 12路直向电缆安装插座, 2A
分类	连接器解决方案圆形连接器工业圆形连接器（扩展）

对参数有疑问？问 AI 助手

商业参数

产品类别	Circular Push Pull Connectors	标准包装数量	50
工厂包装数量	1

合规参数

RoHS

Compliant

抗辐射加固

电气参数

额定电压	30VAC, 42VDC	极数	12
最大额定电流	2A	额定电流 - 设备输入口	2

机械参数

直径	15.5 mm	包装方式	Tray
出线方向	No	外壳尺寸	7
方向	Keyed	外壳样式	Plug
端接方式	Solder Cup	触点形式	12Signal
安装类型	Free Hanging (In-Line)	外壳镀层	Gold
电缆端类型	6.2...7 mm	连接器类型	Plug, Female Sockets
接触镀层	Gold	紧固类型	Push-Pull
安装样式	Cable	外壳材料（壳体）	Plastic
锁定特性	Push-Pull	触头材料	Brass, Phosphor Bronze
壳体材料	Glass fibre (GF)	总长度	39.8 mm
端接排数	焊接	端接样式	Solder
第一触头极性	Socket (Female)	触点数	12
位数	12	外壳尺寸-插件	7
第一连接器极性	Female	外壳材料及表面处理	Polyphenylene Sulfide (PPS)

产品信息

设计类型	Cable socket, straight	连接器性别	Male
系列	HR30	已删除	Compliant
产品特性	Strain Relief	主要用途	Strain Relief
产品子类型	Connectors	射频系列/标准	HR30
输出配置	Free Hanging (In-Line)

环境参数

防护等级

IP67 - Dust Tight, Waterproof

工作温度

-25°C ~ 85°C

文档与媒体

PDF 文档

e13000041.pdf
