点击放大查看

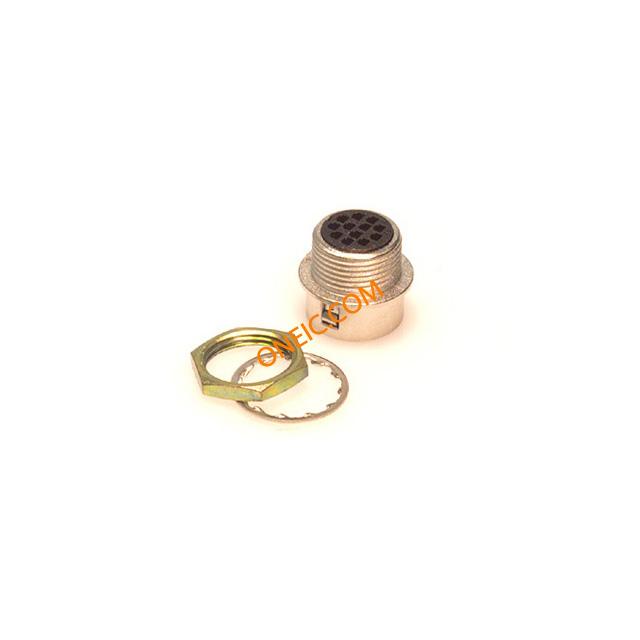

HR10A-13R-20PC(73)
| 制造商 | |
| 描述 | Circular Push Pull Connectors HR10A REC 20POS MALE CONN HR10A RECEPT 20POS MALE Connector,receptacle,male,size 13,20 way Hirose HR10 系列 20路 面板安装 直向 连接器 , 公触点, 推挽式接合 |
| 分类 |
商业参数
| 标准包装数量 | 20 | 工厂包装数量 | 1 |
合规参数
| RoHS | Compliant | ||
电气参数
| 额定电压 | 100 V ac | 连接器阻抗 | 微型 |
| 最大额定电流 | 2A | 连接器类型 - 电压输入 | Micro |
机械参数
| 外形尺寸(长x宽) | 13mm | 包装方式 | Bulk |
| 外壳尺寸 | 13mm | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Crimp |
| 触点尺寸 | 1.0mm | 触头类型 | Crimp |
| 安装类型 | Panel Mount, Bulkhead - Rear Side Nut | 连接器类型 | Receptacle for Male Contacts |
| 接触镀层 | Silver | 紧固类型 | Push-Pull |
| 安装样式 | Through Hole | 连接器用途 | Push-Pull |
| 触头材料 | Brass, Bronze | 壳体材料 | Brass, Zinc Alloy |
| 端接排数 | 压接 | 端接样式 | Crimp |
| 第一触头极性 | Male | 触点数 | 20 |
| 位数 | 20 | 外壳尺寸-插件 | 13 |
| 外壳材料及表面处理 | Brass and Zinc, Nickel Plated | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | HR10A | 产品子类型 | Connectors |
环境参数
| 工作温度 | +85°C | ||
