点击放大查看

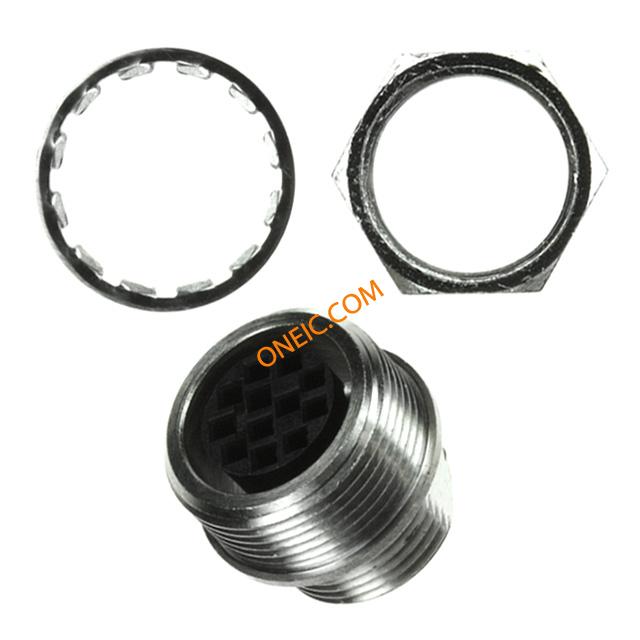

HR10A-10TR-12SC(73)

制造商	Hirose Electric Co., Ltd.
描述	Circular Push Pull Connectors REC 12POS FEM CRIMP CONN RECEPT 12POS FEMALE CRIMP Hirose HR10 系列 12路面板安装直向连接器插座 , 母触点, 推挽式接合
分类	连接器解决方案圆形连接器工业圆形连接器（扩展）

对参数有疑问？问 AI 助手

商业参数

标准包装数量

工厂包装数量

合规参数

RoHS

RoHS Compliant

电气参数

额定电压	100 V	连接器阻抗	微型
最大额定电流	2 A

机械参数

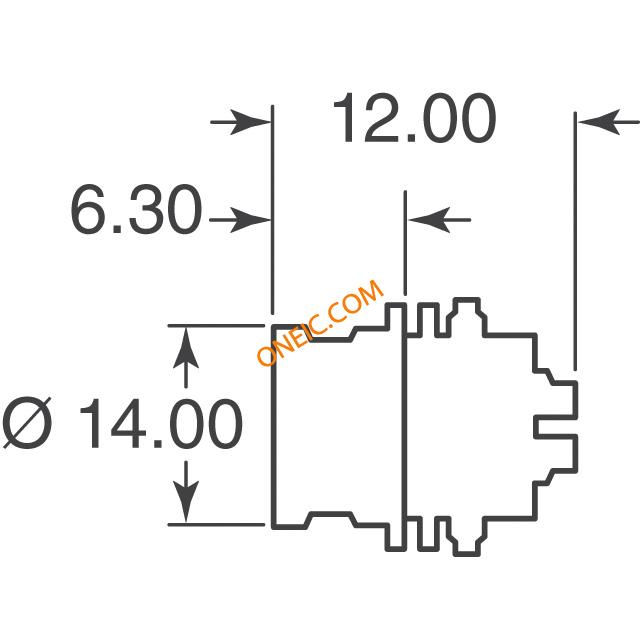

外形尺寸(长x宽)	10mm	包装方式	Bulk
外壳尺寸	10	方向	Keyed
外壳样式	Receptacle	触点尺寸	1.0mm
触头类型	Crimp	安装类型	Panel Mount, Bulkhead - Rear Side Nut
外壳镀层	Nickel	连接器类型	Receptacle for Female Contacts
接触镀层	Gold	紧固类型	Threaded
安装样式	Panel	外壳材料（壳体）	Hybrid
触头材料	磷铜	壳体材料	黄铜，锌合金
端接排数	压接	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	12
位数	12	外壳尺寸-插件	10
外壳材料及表面处理	Brass and Zinc, Nickel Plated

产品信息

备注	Contacts Not Provided	系列	HR10
产品子类型	Connectors

环境参数

工作温度

+85°C

文档与媒体

PDF 文档

HR10 Series

PDF 文档

e11000216.pdf
