点击放大查看
DF5A-4S-5C
| 制造商 | |
| 描述 | Headers & Wire Housings Housing PL 4 POS 5mm ST Bag CONN RECEPT HOUSING 4POS 5MM Conn Housing PL 4 POS 5mm Crimp ST Cable Mount Bag |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 500 V | 最大额定电流 | 8 A |
| 最小供电电压 | 500VAC | ||
机械参数

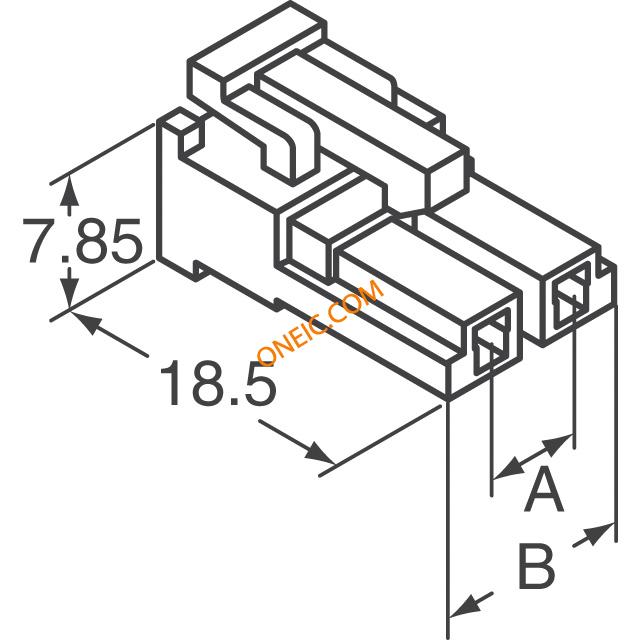

| 颜色 | White | 深度 | 18.5 mm |
| 间距 | 0.197" (5.00mm) | 高度 | 10.15 mm |
| 包装方式 | Bulk | 导线线规 | 18-22 AWG |
| 触头类型 | Female Socket | 外壳颜色 | White |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Tin | 紧固类型 | Latch Lock |
| 安装样式 | Wire | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Polyamide |
| 总长度 | 20.5 mm | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 4 |
| 接触件端接 | Crimp | 位数 | 4 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | DF5 |
| 已删除 | Compliant | 产品子类型 | Receptacles / Sockets - Housings |
环境参数
| 工作温度 | -35C to 85C | ||
文档与媒体
相关型号
DF5A-4P-5DSA(05)
Hirose Connector
Headers & Wire Housings HDR 4POS 5MM STRGHT TIN CONN HEADER 4POS 5MM STRGHT TIN Conn Wire to Board HDR 4 POS 5mm Solder ST Thru-Hole Bag

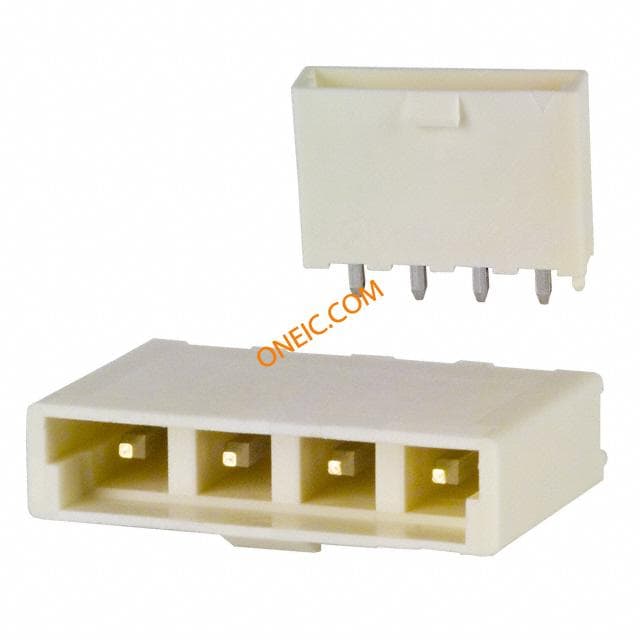

DF5A-4P-5DSA
