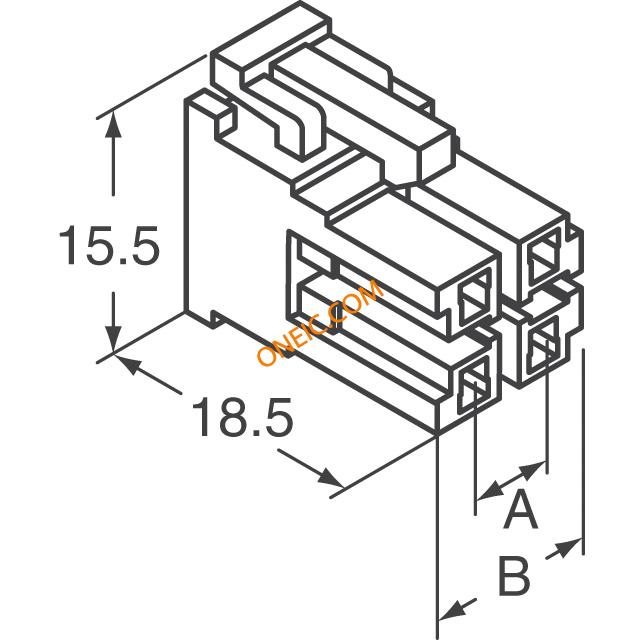

DF5A-10DS-5C
| 制造商 | |
| 描述 | Headers & Wire Housings Housing PL 10 POS 5mm ST Bag CONN RECEPT HOUSE 10POS 5MM DUAL Conn Housing PL 10 POS 5mm Crimp ST Cable Mount Bag |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 500 VAC | 最大额定电流 | 7 A |
| 最小供电电压 | 500VAC | ||
机械参数
| 颜色 | White | 深度 | 18.5 mm |
| 间距 | 0.197" (5.00mm) | 高度 | 15.5 mm |
| 包装方式 | Bulk | 导线线规 | 18-22 AWG |
| 排间距 | 0.197" (5.00mm) | 触头类型 | Female Socket |
| 外壳颜色 | White | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 紧固类型 | Latch Lock |
| 排数 | 2 | 壳体材料 | Polyamide |
| 总长度 | 25.5 mm | 触点数 | 2 |
| 接触件端接 | Crimp | 位数 | 10 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | DF5 |
| 已删除 | Compliant | 产品子类型 | Receptacles / Sockets - Housings |
环境参数
| 工作温度 | -35C to 85C | ||
文档与媒体
相关型号
DF5A-10DP-5DSA(05)
Hirose Connector
Headers & Wire Housings HDR 10P 5MM DUAL TIN CONN HEADER 10POS 5MM DUAL TIN

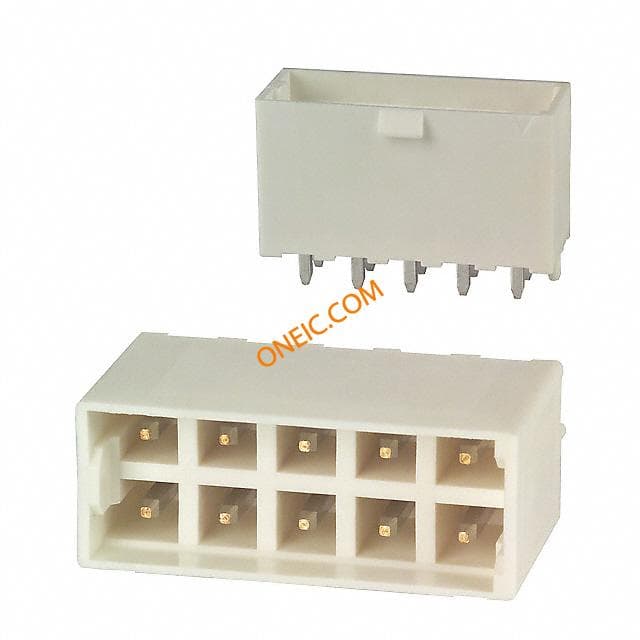

DF5A-10DP-5DSA
Hirose Connector
Headers & Wire Housings Obsolete CONN HEADER 10POS 5MM DUAL TIN
.JPG&w=3840&q=75)
DF5A-1822SC(51)
Hirose Connector
ヘッダ & ワイヤハウジング MINI POTTING CONN AWG18-22 SKT CONT CONN SOCKET 18-22AWG CRIMP TIN
.JPG&w=3840&q=75)

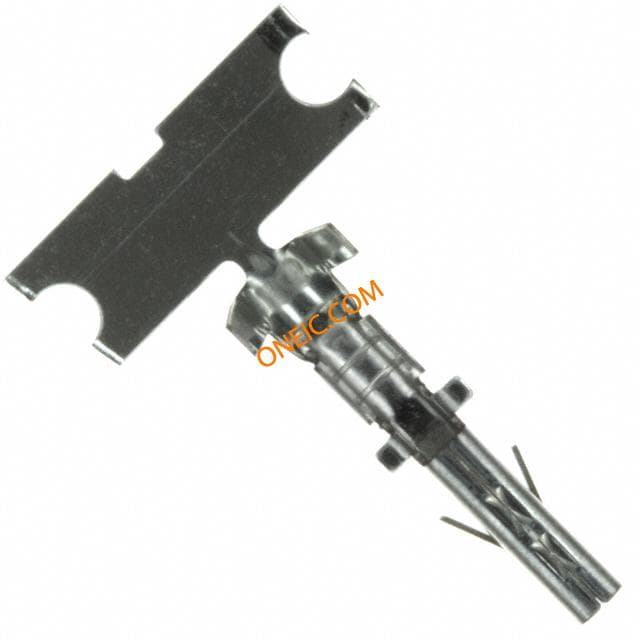

DF5A-1822SCF(51)
Hirose Connector
Headers & Wire Housings SOC 18-22AWG CRIMP TIN CONN SOCKET 18-22AWG CRIMP TIN Contact SKT Crimp ST Cable Mount Reel
.JPG&w=3840&q=75)

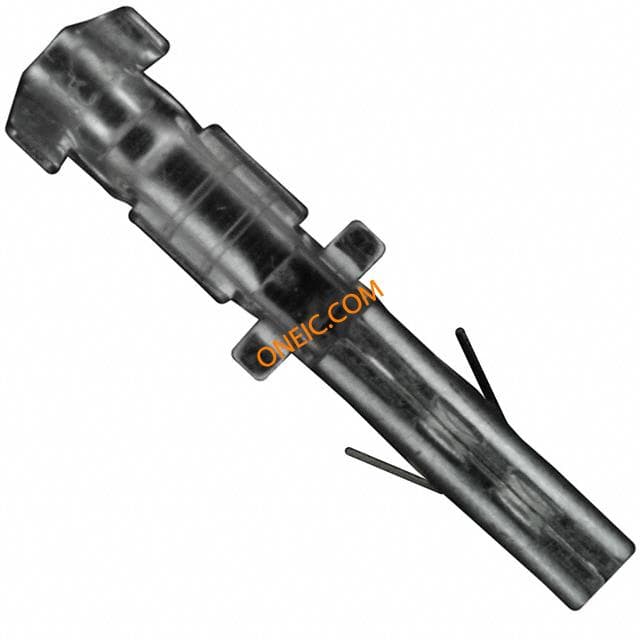

DF5-1822SCF(51)
Hirose Connector
Headers & Wire Housings MINI POTTING CONN AWG18 TO 22 SKT CNT CONN SOCKET 18-22AWG CRIMP TIN
DF5-1822SC(51)
Hirose Connector
Headers & Wire Housings MINI POTTING CONN AWG18 TO 22 SKT CNT CONN SOCKET 18-22AWG CRIMP TIN

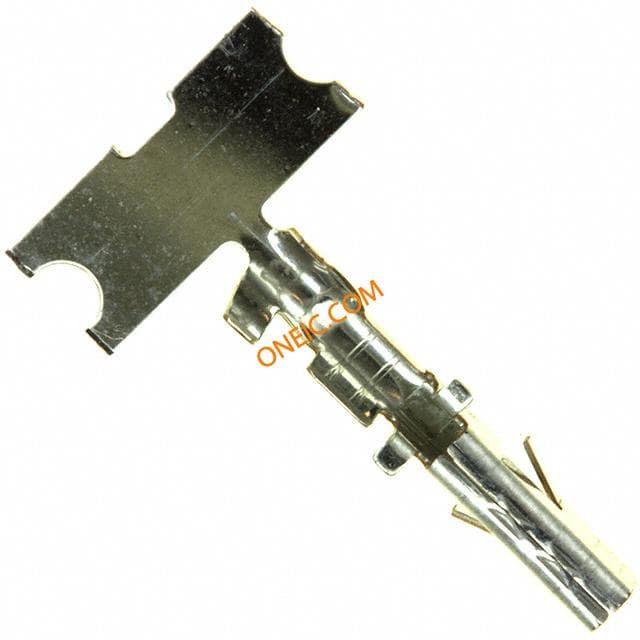

DF5-1822SCF
