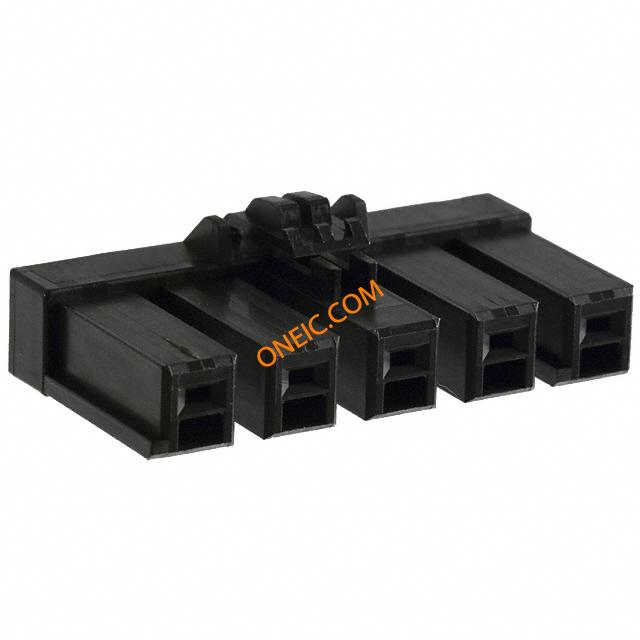

DF22R-5S-7.92C(28)
| 制造商 | |
| 描述 | 電源対基板 Housing PL 5 POS 7.9 7.92mm ST Bag CONN SOCKET 5POS 7.92MM BLACK PCB Connector bd-wire 7.92mm pitch Power to the Board Housing PL 5 POS 7.9 7.92mm ST Bag |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | 100 |
合规参数
| RoHS | Not Applicable | ||
电气参数
| 额定电压 | 1 KVDC/AC | ||
机械参数
| 颜色 | Black | 深度 | 20mm |
| 间距 | 0.312" (7.92mm) | 宽度 | 11.55mm |
| 长度 | 39.26mm | 包装方式 | Bulk |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 紧固类型 | Latch Lock |
| 安装样式 | Panel | 排数 | 1 |
| 壳体材料 | PA | 触点数 | 5 |
| 接触件端接 | Crimp | 位数 | 5 |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Male |
| 系列 | DF22 | 产品特性 | Polarizing Key |
| 产品子类型 | Receptacles | 适用产品/相关产品 | High Current Connector |
