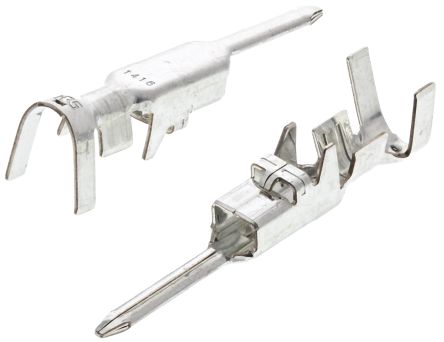

DF22A-1416PC
| 制造商 | |
| 描述 | 電源対基板 AWG14 TO 16 IN LINE PLG CONT CRIMP CONTACT Crimp contact,DF22,pin,AWG 14-16 Power to the Board AWG14 TO 16 IN LINE PLG CONT Contact PIN Crimp ST Cable Mount Bag Hirose DF22 系列 公 压接接线端子, 压接, 镀锡铜触点 |
| 分类 |
商业参数
| 其他名称 | 680-1081-5-00 | 标准包装数量 | 100 |
合规参数
| RoHS | Compliant | ||
电气参数
| 额定电压 | 1 kV | 接触电阻 | 5mΩ |
| 最大额定电流 | 15 A, 20 A | ||
机械参数
| 导线线规 | 16AWG | 端接方式 | Crimp |
| 连接器类型 | 公插 | 接触镀层 | Tin Copper |
| 触头材料 | Copper Alloy | 端接排数 | 压接 |
| 端接样式 | Crimp | 第一触头极性 | Pin (Male) |
| 典型触点布局 | Power | 线规或范围 - AWG | 16-14 |
产品信息
| 连接器性别 | Male | 系列 | DF22 |
| 已删除 | Compliant | 产品子类型 | Contacts |
| 适用产品/相关产品 | DF22 Series | ||
环境参数
| 工作温度 | +85°C | ||
