点击放大查看

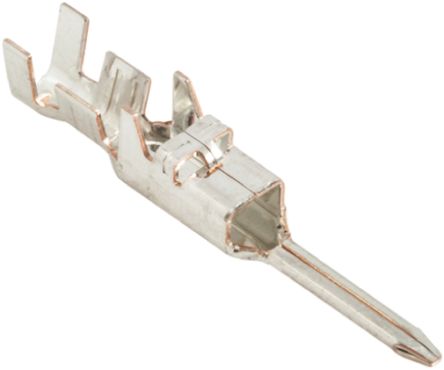

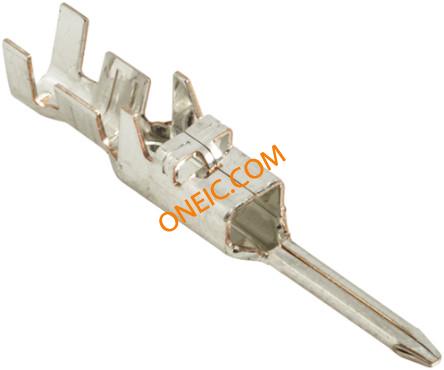

DF22-1416PC
| 制造商 | |
| 描述 | Power to the Board HI CURRENT CON AWG14 TO 16 INLINE PLG CNT CONN TERMINAL UL1430 14-16AWG Crimp contact,inline plug,DF22,AWG 14-16 DF22-1416PC Hirose DF22 系列 公 压接接线端子, 压接, 镀锡触点 |
| 分类 |
商业参数
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Compliant | ||
电气参数
| 接触电阻 | 5mΩ | 最大额定电流 | 20 A |
机械参数
| 导线线规 | 16AWG | 端接方式 | Crimp |
| 连接器类型 | 公插 | 接触镀层 | Tin Lead Alloy |
| 安装样式 | Cable | 触头材料 | Copper Alloy |
| 端接排数 | 压接 | 端接样式 | Crimp |
| 第一触头极性 | Pin (Male) | 线规或范围 - AWG | 14AWG |
产品信息
| 连接器性别 | Male | 系列 | DF22 |
| 产品子类型 | Connectors | 适用产品/相关产品 | DF22 Series |
环境参数
| 工作温度 | +85°C | ||
