点击放大查看

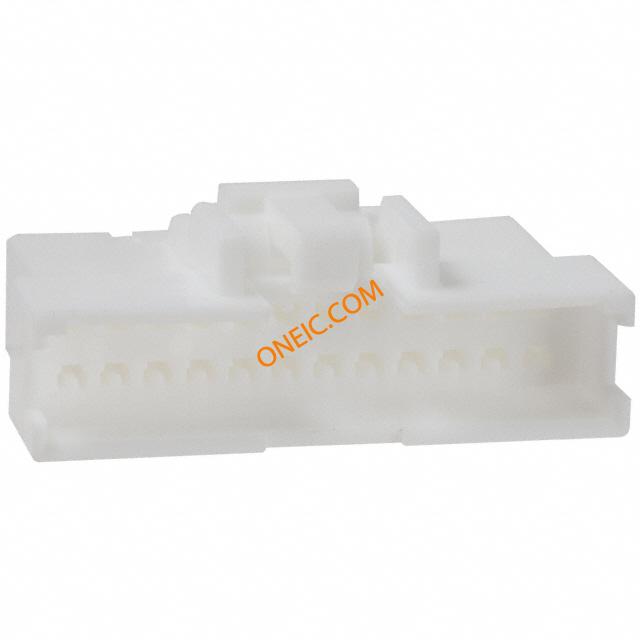

DF1B-24DEP-2.5RC
| 制造商 | |
| 描述 | Headers & Wire Housings 2.5MM DOUBLE ROW 24P INLINE PLUG CONN PLUG HOUSING 24POS 2.5MM Conn Housing RCP 24 POS 2.5mm Crimp ST Cable Mount Bag |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 100 |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250 VAC | 开关功能 | Unlatched |
| 最大额定电流 | 3 A | 最小供电电压 | 250VAC |
| 连接器类型 - 电压输入 | Crimp, IDC | ||
机械参数
| 颜色 | White | 深度 | 18.5 mm |
| 间距 | 0.098" (2.50mm) | 高度 | 12.3 mm |
| 包装方式 | Bulk | 导线线规 | 20-30 |
| 排间距 | 0.098" (2.50mm) | 触点形式 | Male Pin |
| 触头类型 | Male Pin | 引脚间距 | 0.098" (2.50mm) |
| 外壳颜色 | White | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug | 紧固类型 | Latch Lock |
| 排数 | 2 | 壳体材料 | Polyamide (PA) |
| 总长度 | 34.7 mm | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 触点数 | 24 |
| 接触件端接 | Crimp, IDC | 位数 | 24 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 系列 | DF1B |
| 已删除 | Compliant | 产品子类型 | Plugs - Housings |
| 输出配置 | Free Hanging (In-Line) | ||
环境参数
| 工作温度 | -35C to 85C | ||
