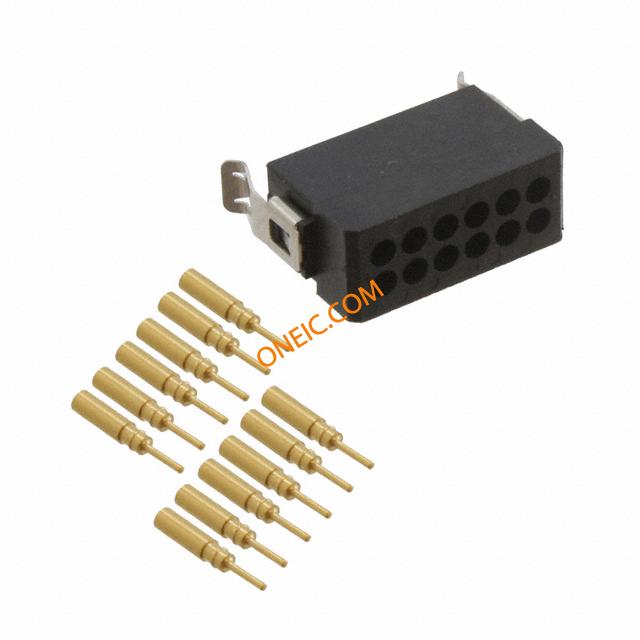

M80-8131205
| 制造商 | |
| 描述 | DIL MALE LARGE BORE CRIMP CONN |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 10 | ||
机械参数
| 颜色 | Black | 间距 | 0.079" (2.00mm) |
| 包装方式 | Bulk | 导线类型 | Discrete |
| 导线线规 | 22 AWG | 排间距 | 0.079" (2.00mm) |
| 触头类型 | Male Pin | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Header | 接触镀层 | Gold |
| 紧固类型 | Latch Lock | 排数 | 2 |
| 电缆端接方式 | Crimp | 位数 | 12 |
| 接触镀层厚度 | 10µin (0.25µm) | ||
