点击放大查看

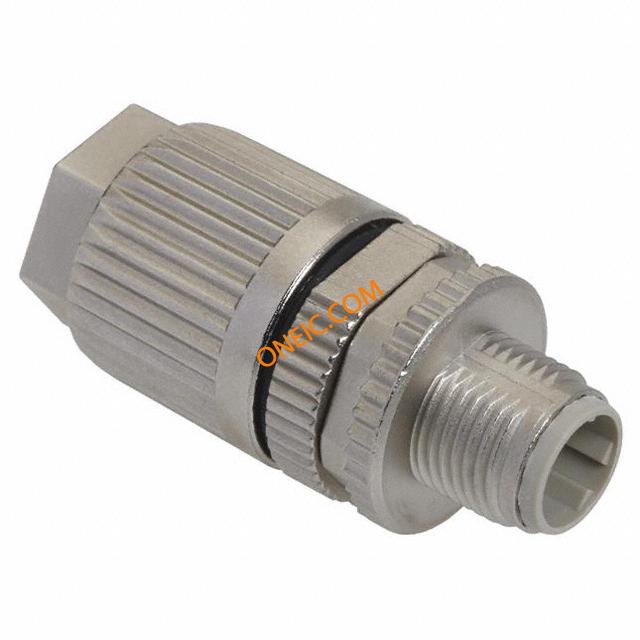

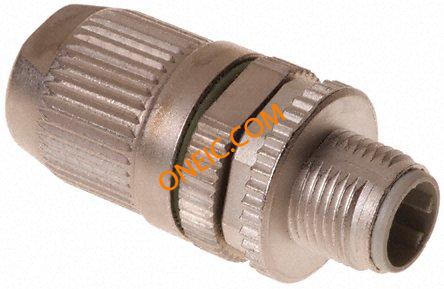

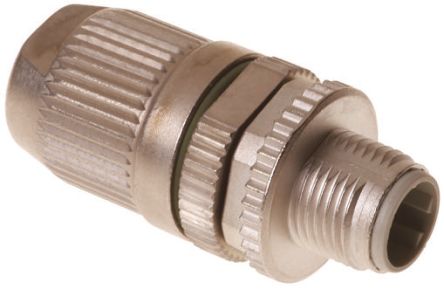

21038821405
| 制造商 | |
| 描述 | CIRCULAR CONN M12 CRIMP MALE Ethernet & Telecom Connectors M12 MALE CRIMP D-CODING CONN HSG PLUG 4POS CABLE PIN 4 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Circular Metric Connectors M12 MALE CRIMP D-CODING Conn Circular M 4 POS Crimp ST Cable Mount 4 Terminal 1 Port CircularConnectorM12crimpmaleD-code Han M12 Crimp: Circular Connector M12 crimp male D-code Harting 4路 电缆安装 直向 连接器 , 公触点 |
| 分类 |
商业参数
| 其他名称 | 1195-3275 | 零件号别名 | 021 021-03-882-1405 03 1405 882 |
| 产品类别 | Circular Metric Connectors | 标准包装数量 | 1 |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Compliant | 抗辐射加固 | No |
电气参数
| 额定电压 | 250 V | 连接器阻抗 | M12 |
| 最大额定电流 | 4 A | ||
机械参数
| 直径 | 19.5 mm | 包装方式 | Bulk |
| 出线方向 | No | 方向 | D |
| 外壳样式 | Plug | 端接方式 | Crimp |
| 重量（g） | 42.00000 | 触头类型 | Crimp |
| 安装类型 | Free Hanging (In-Line) | 电缆直径 | 4.5 mm to 8.8 mm |
| 连接器类型 | Plug for Male Contacts | 紧固类型 | Threaded |
| 安装样式 | Cable | 总长度 | 41.5 mm |
| 端接排数 | 压接 | 端接样式 | Crimp |
| 第一触头极性 | Male | 触点数 | 4 |
| 位数 | 4 | 外壳尺寸-插件 | M12-4 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Circular Connector |
| 产品特性 | Shielded, Strain Relief | 产品子类型 | Connectors |
环境参数
| 密封等级 | IP 65, IP 67 | 防护等级 | IP65/67 - Dust Tight, Water Resistant, Waterproof |
