19620031250

制造商	HARTING Technology Group

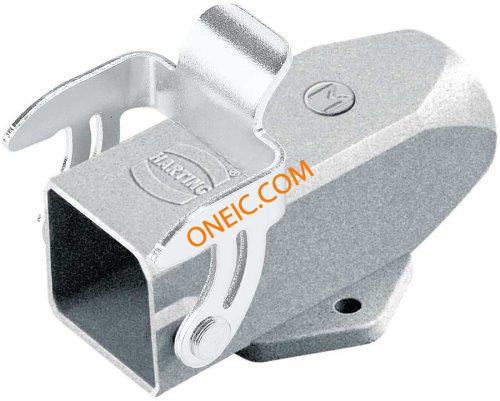

描述	Heavy Duty Power Connectors SURFACE MOUNTING HSG 1 SIDE ENTRY OPEN HAN 3 EMC BASE SURFACE 1 LEVER M CONN BASE SIDE ENTRY SZ3A M20 Han3EMCBaseSurface1LeverM20 Harting HAN EMV 系列电源连接器 , 表面安装
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	003 019 019-62-003-1250 1250 62	产品类别	Heavy Duty Power Connectors
标准包装数量	10	工厂包装数量	10

合规参数

RoHS

RoHS Compliant

机械参数

尺寸	3A	包装方式	Bulk
螺纹尺寸	M20	安装类型	表面安装
连接器类型	Base - Panel Mount 90°	壳体材料	Zinc, Die Cast
尺寸/外形	1.575" L x 1.102" W x 1.043" H (40.00mm x 28.00mm x 26.50mm)

产品信息

类型	连接器外壳	样式	Side Entry
系列	*	产品子类型	Receptacle Housings
锁定位置	Side Clip on Base Bottom	基础产品编号	1962

环境参数

防护等级

IP44

工作温度

-40°C ~ 125°C
