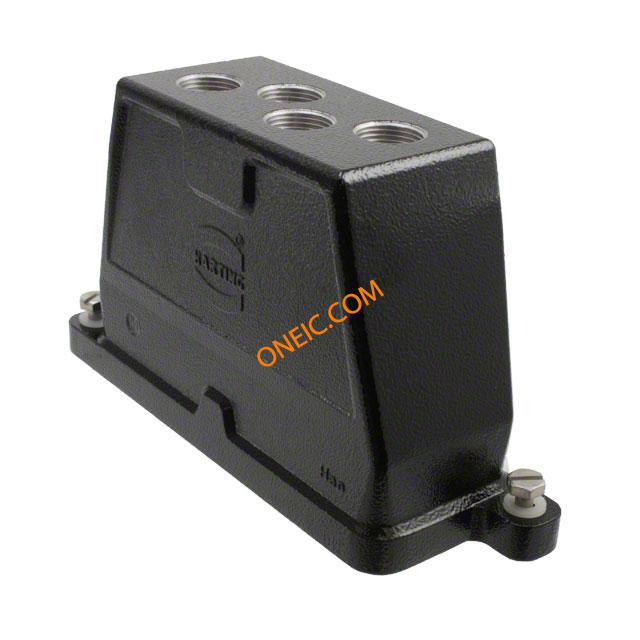

19400240473
| 制造商 | |
| 描述 | HAN 24HPR HOOD TOP 4XM20 SCREW Heavy Duty Power Connectors HAN 24HPR HOOD TOP ENTRY 4XM20 SCR LK Han HPR Hoods: Han 24HPR Hood Top Entry 4*M20 ScrewLock |
| 分类 |
商业参数
| 其他名称 | 1195-3163 | 零件号别名 | 019 019-40-024-0473 024 0473 40 |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | ||
机械参数
| 尺寸 | 24B | 包装方式 | Bulk |
| 螺纹尺寸 | M20 | 外壳颜色 | Black |
| 连接器类型 | Hood | 外壳涂层 | Epoxy Powder Paint |
| 壳体材料 | Aluminum, Die Cast | 尺寸/外形 | 7.559" L x 2.283" W x 4.331" H (192.00mm x 58.00mm x 110.00mm) |
产品信息
| 类型 | CONNECTORS | 样式 | Top Entry, Quad |
| 锁定位置 | Screw Locks on Hood | ||
环境参数
| 防护等级 | IP68/69K - Dust Tight, Waterproof | 工作温度 | -40°C ~ 125°C |
