芯天下
09694120214

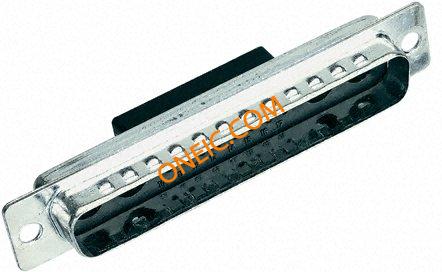

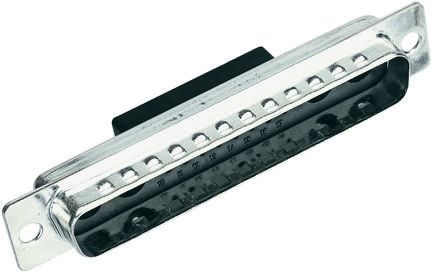

点击放大查看

09694120214

制造商
HARTING Technology Group
描述
D-Sub Mixed Contact Connectors 8SUB MA 21W4 CRIMP INSULATOR Conn Housing M 4Coaxial/17Signal POS Crimp ST Panel Mount 8SUB MA 21W4 CRIMP INSULATOR D-Sub Mixed Connector 21WA4 M D-SubMixedConnector21WA4M Harting 17（信号），4（功率/同轴）路 直 混合压接 D-Sub 连接器, 插头
分类
连接器解决方案D-Sub连接器D-Sub连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名0214 09 09-69-412-0214 412 69产品类别D-Sub Mixed Contact Connectors
标准包装数量50工厂包装数量50

合规参数

RoHSRoHS Compliant欧盟RoHSCompliant

电气参数

最大额定电流5A

机械参数

深度16.7mm宽度12.5mm
高度12.5长度69.3mm
包装方式Bulk方向直
触头类型Coax or Power and Signal安装类型Straight
连接器类型Plug for Male Contacts法兰特征Housing/Shell (Unthreaded)
排数2连接器样式D-Sub, Combo
壳体材料Steel总长度69.3
尺寸/外形69.3 x 12.5 x 16.7mm触点数4Coaxial/17Signal
介电材料Polybutylene Terephthalate (PBT), Polyester, Glass Filled位数21 (17 + 4 Coax or Power)
外壳材料及表面处理Steel, Tin Plated外壳尺寸，连接器布局4 (DC, C) - 21WA4

产品信息

备注Contacts Not Provided类型Housing
连接器性别M系列*
产品特性Grounding Indents

环境参数

机械寿命New At Mouser工作温度125°C

文档与媒体

在线文档
hkcgi.exe?crq_npld?&show=09694120214&language=GB
