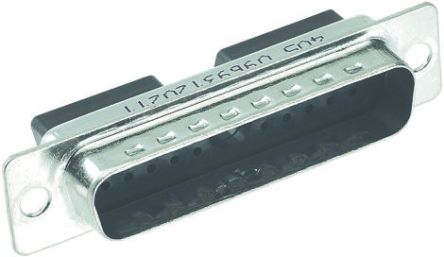

点击放大查看

09692120111

制造商	HARTING Technology Group
描述	D-Sub Mixed Contact Connectors DSUB ML 11W1 CRIMP CONN D SUB MA 11W1 CRIMP CONNECTOR WI D-Sub Mixed Connector 11W1 M D-SubMixedConnector11W1M Harting 1（功率/同轴），10（信号）路直混合压接 D-Sub 连接器, 插头
分类	连接器解决方案D-Sub连接器D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	0111 09 09-69-212-0111 212 69	产品类别	D-Sub Mixed Contact Connectors
标准包装数量	50	工厂包装数量	50

合规参数

RoHS

Lead free / RoHS Compliant

电气参数

最大额定电流

机械参数

深度	16.7mm	宽度	12.5mm
长度	39.1mm	包装方式	Bulk
方向	直	触头类型	Coax or Power and Signal
安装类型	Straight	连接器类型	Plug for Male Contacts
法兰特征	Housing/Shell (Unthreaded)	排数	2
连接器样式	D-Sub, Combo	壳体材料	Steel
尺寸/外形	39.1 x 12.5 x 16.7mm	触点数	11
介电材料	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	位数	11 (10 + 1 Coax or Power)
外壳材料及表面处理	Steel, Tin Plated	外壳尺寸，连接器布局	2 (DA, A) - 11C1, 11W1

产品信息

备注	Contacts Not Provided	连接器性别	Male
系列	*	产品特性	Grounding Indents

环境参数

工作温度

125°C

文档与媒体

PDF 文档

TB_09692120111_BL01_R33775.pdf
