点击放大查看

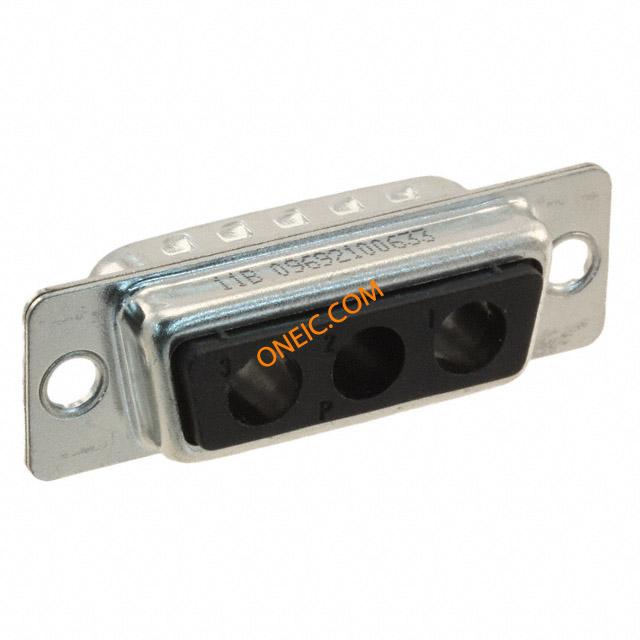

09692100633500
| 制造商 | |
| 描述 | D-Sub Mixed Contact Connectors DSUB ML 3W3C WO ACC NON MAGNETIC D SUB MA 3W3C_WO ACCESSORY_ NON |
| 分类 |
商业参数
| 零件号别名 | 063 09692 09692-10-063-3500 10 3500 | 产品类别 | D-Sub Mixed Contact Connectors |
| 标准包装数量 | 50 | 工厂包装数量 | 50 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 包装方式 | Bulk | 触头类型 | Coax or Power (Not Included) |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Plug for Male Contacts |
| 法兰特征 | Housing/Shell (Unthreaded) | 排数 | 1 |
| 连接器样式 | D-Sub, Combo | 介电材料 | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| 位数 | 3 (Coax or Power) | 外壳材料及表面处理 | Steel, Tin Plated |
| 外壳尺寸，连接器布局 | 2 (DA, A) - 3W3 | ||
产品信息
| 备注 | Contacts Not Provided | 系列 | * |
| 产品特性 | Grounding Indents | ||
环境参数
| 工作温度 | -55°C ~ 125°C | ||
