点击放大查看

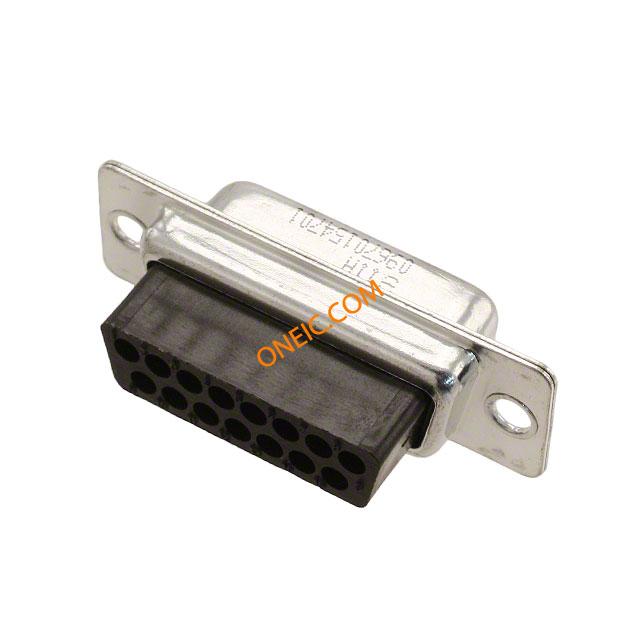

09670154701

制造商	HARTING Technology Group
描述	D-Sub Standard Connectors 15P FEMALE CRIMP NO CONTACTS D SUB FE CRIMP 15 POLE D-Sub connector crimp 15-pin housing F CrimpDConnector(FemaleTinnedMetalShell)15position D-Sub; PIN:15; female; w/o terminals Harting 15路直压接式 D-sub 连接器, 插座
分类	连接器解决方案D-Sub连接器D-Sub连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	015 09 09-67-015-4701 4701 67	产品类别	D-Sub Standard Connectors
标准包装数量	1	工厂包装数量	50

合规参数

RoHS

RoHS Compliant

标准

MIL-C-24308,DIN41652,CECC75301-802

电气参数

连接器类型 - 电压输入

w/o terminals

机械参数

深度	17.9mm	宽度	12.5mm
长度	39.1mm	重量	5 g
包装方式	Bulk	方向	直
端接方式	Crimp	触头类型	Signal
安装类型	Straight	行程角度	Straight
连接器类型	Receptacle for Female Contacts	法兰特征	Housing/Shell (Unthreaded)
外壳涂层	Tin	安装样式	Wire
排数	2	连接器样式	D-Sub
壳体材料	Metal	主要材料	D-Subminiature
尺寸/外形	39.1 x 12.5 x 17.9mm	端接样式	Crimp
触点数	15	介电材料	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
位数	15	外壳材料及表面处理	Steel, Tin Plated
外壳尺寸，连接器布局	2 (DA, A)

产品信息

备注	Contacts Not Provided	类型	CableSocket
连接器性别	Female	CAD图纸	3D CAD Model
单元数量	1

环境参数

工作温度

-55°C ~ 125°C
