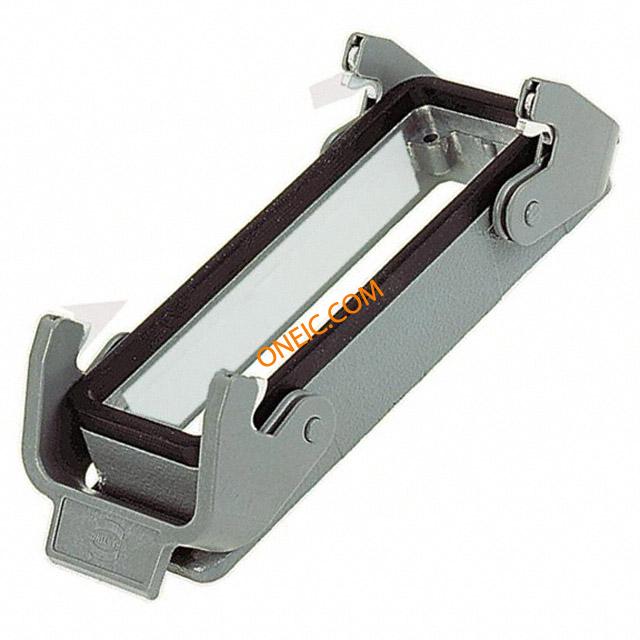

09340100301
| 制造商 | |
| 描述 | HAN HVE BASE PANEL 2 LEVERS Heavy Duty Power Connectors BULKHEAD MOUNTING HAN 24B 2 LVR LCKING Housing,PowerConnector;Metal;TwoLeversHousing;HanHvESeries Enclosure: for Han connectors; Han; size 24B; with double latch Harting HAN HV E 系列 电源连接器 , 隔板 |
| 分类 |
商业参数
| 零件号别名 | 010 0301 09 09-34-010-0301 34 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 10 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 频率 | Locking Clip on Base Bottom | ||
机械参数
| 尺寸 | 24B | 重量 | 0 mg |
| 包装方式 | Bulk | 外壳表面处理 | Powder Coated |
| 安装类型 | 隔板 | 连接器类型 | Base - Panel Mount |
| 外壳涂层 | Powder Coated | 安装样式 | Vertical |
| 封装形式 | size 24B | 锁定特性 | with double latch |
| 壳体材料 | Aluminum, Die Cast | 包装数量 | 1 |
| 尺寸/外形 | 5.512" L x 1.709" W x 1.138" H (140.00mm x 43.40mm x 28.90mm) | 供应商器件封装 | for Han connectors |
| 外壳与棱镜材料 | aluminium alloy | ||
产品信息
| SPG | 1 | 类型 | 外壳 |
| 样式 | Bottom Entry | 系列 | Han® Hv E |
| 产品子类型 | Housings | 锁定位置 | Locking Clip on Base Bottom |
| 适配器系列 | Han | 单元数量 | 1 |
| 基础产品编号 | 0934 | ||
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -40°C ~ 125°C |
相关型号
09300245405
Harting Technology Group
HAN 24 B - AK Thermoplastic Cover With Pin Heavy Duty Power Connectors HAN 24B COVER THERMOPLASTIC COVER HAN 24B PROTECT COVER WITH PIN Han24BProtectCoverwithpinThermopla Protection cover; Han; size 24B; for double latch; thermoplastic Han B Accessories: Han 24B Protect Cover with pin Thermopla Harting Han B 系列 保护盖 , 适用于电缆到电缆护罩

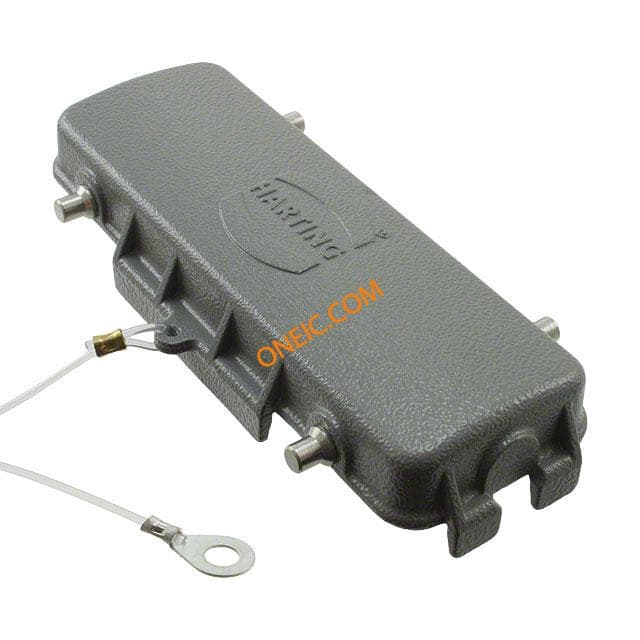

09300245425
