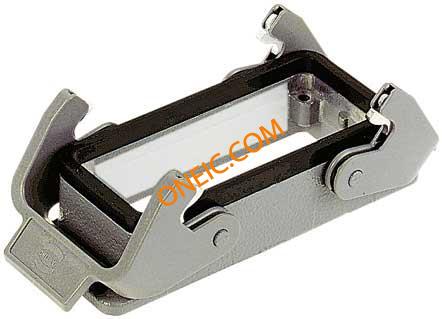

点击放大查看

09340060301

制造商	HARTING Technology Group
描述	Heavy Duty Power Connectors BULKHEAD MOUNTING HAN 16B 2 LVR LCKING HAN HVE BASE PANEL 2 LEVERS CONN BASE BOTTOM ENTRY SZ16B
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	006 0301 09 09-34-006-0301 34	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

RoHS Compliant

机械参数

尺寸	16B	包装方式	Bulk
连接器类型	Base - Panel Mount	外壳涂层	Powder Coated
壳体材料	Aluminum, Die Cast	尺寸/外形	4.449" L x 1.709" W x 1.138" H (113.00mm x 43.40mm x 28.90mm)

产品信息

样式	Bottom Entry	系列	*
产品子类型	Accessories	锁定位置	Locking Clip on Base Bottom

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
