点击放大查看

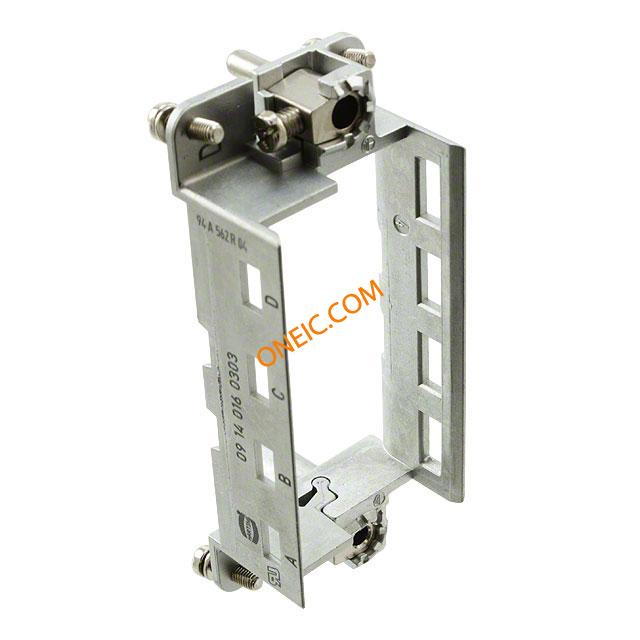

09140160303

制造商	HARTING Technology Group
描述	HINGED FRAME 16B FOR 4 MODULES Heavy Duty Power Connectors FRAME FOR 4 MODULES FOR 16P HOOD A-D Han(R) 4 insert module A-D hood frame anModularHingedFramefor4ModuleAD16HOOD Frame for modules; Han Modular; size 16B; A..D marks; Modules:4 Han-Modular Metal Frames: Han Modular frame 16 hood 4 module A-D ( Harting HAN Modular 系列铰接框架 , 适用于标准 Han 护罩和外壳
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	016 0303 09 09-14-016-0303 14	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	2

合规参数

RoHS

Compliant

电气参数

连接器类型 - 电压输入

A..D marks

机械参数

重量	0.07 kg	材料（通用）	Zinc
包装方式	Bulk	框架类型	Retaining Frame, Hinged
重量（g）	70.00000	封装形式	size 16B
连接器用途	frame for modules	插入力	Male, Female
总宽度	4	壳体材料	Zinc
包装数量	4	尺寸/外形	16B

产品信息

SPG	4	类型	CONNECTORS
连接器性别	Female/Male	系列	Han Modular
包含附件	5 pcs - 1 Frame, 4 Screws	CAD图纸	3D CAD Model
产品子类型	Accessories	附件类型	Hinged Frame
适配器系列	Han Modular	测量范围	Han Modular 铰接框架
单元数量	1	模块数	4
适用产品/相关产品	标准 Han 护罩和外壳

环境参数

工作温度

-40°C ~ 125°C
