27710400001
| 制造商 | |
| 描述 | Connector Accessories Bracket Hard Metric Connectors 4 CAVITY BRKT FRONT FIXING HLNK 4 CAVITIES BRACKET Bracket with front fixing BRACKET Harting 托架 外罩, 使用于 Har-link |
| 分类 |
商业参数
| 零件号别名 | 0001 027 027-71-040-0001 040 71 | 产品类别 | Hard Metric Connectors |
| 标准包装数量 | 10 | 工厂包装数量 | 10 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 深度 | 15.96 | 高度 | 19 |
| 总长度 | 33 | ||
产品信息
| 类型 | Bracket | 产品特性 | Board Guide |
| 盖类型 | Bracket | CAD图纸 | 3D CAD Model |
| 产品子类型 | Accessories | 附件类型 | Bracket |
| 适用产品/相关产品 | Har-Link® Series | ||
相关型号

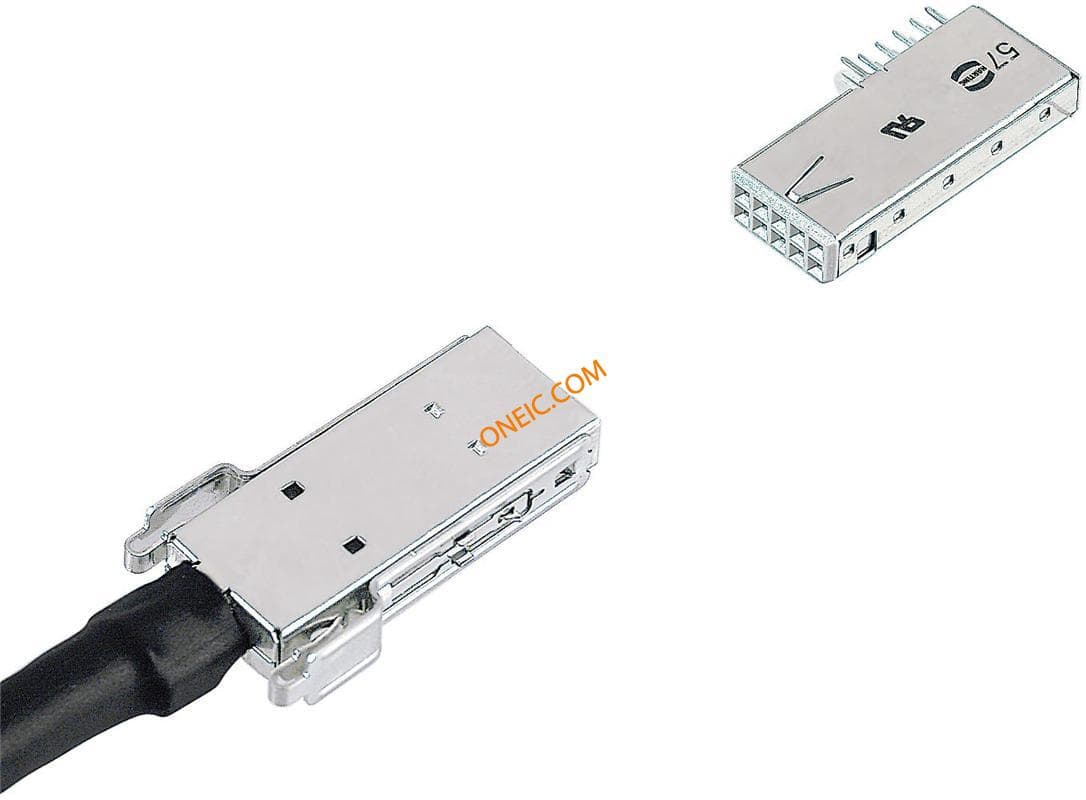

27211218000
