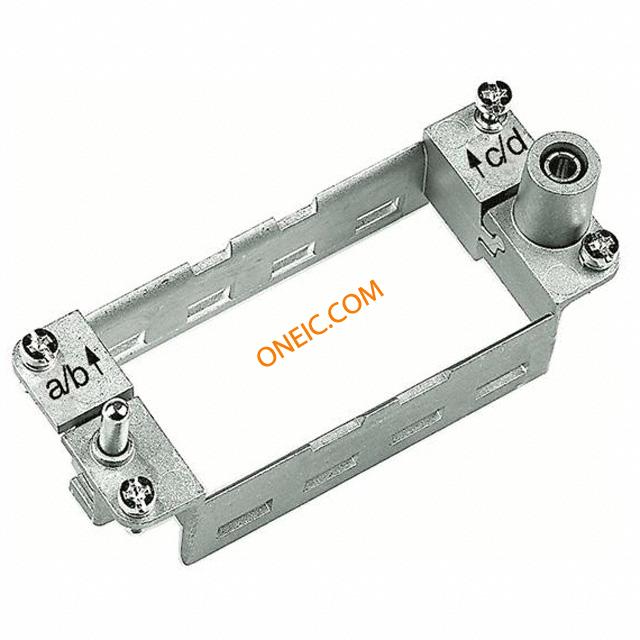

09140160313

制造商	HARTING Technology Group
描述	Connector Accessories Female Insert Hinged Frame Heavy Duty Power Connectors FRAME FOR 4 MODULES FOR 16P HOUSING a-d HINGED FRAME 16B FOR 4 MODULES Han(R) 4 insert module a-d housing frame FRAME FOR MODULES HanModularHingedFramefor4Modulea-d16housing Frame for modules; Han Modular; size 16B; a..d marks; Modules:4 Han-Modular Metal Frames: Han Modular frame 16 housing 4 module a- Harting HAN Modular 系列铰接框架 , 适用于标准 Han 护罩和外壳
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	016 0313 09 09-14-016-0313 14	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	2

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
海关税号	85369010

电气参数

连接器类型 - 电压输入

a..d marks

机械参数

深度	36.5	高度	34.4
重量	0.064	材料（通用）	Zinc
包装方式	Bulk	框架类型	Retaining Frame, Hinged
重量（g）	65.33000	封装形式	size 16B
连接器用途	frame for modules	插入力	Male, Female
总宽度	4	触头材料	:Aluminium
壳体材料	Zinc	总长度	84.5
包装数量	2	尺寸/外形	32B
触点数	:4	外壳尺寸-插件	:16B

产品信息

SPG	2	类型	Hinged Frame
连接器性别	Female/Male	系列	Han Modular
包含附件	5 pcs - 1 Frame, 4 Screws	CAD图纸	3D CAD Model
产品子类型	Accessories	附件类型	Hinged Frame
适配器系列	Han Modular	单元数量	1
模块数	4	适用产品/相关产品	:Hinged frame Han Modular

环境参数

工作温度

-40°C ~ 125°C
