70G-IDC24
| 制造商 | Grayhill, Inc. |
| 描述 | Relay SSR 18mA 32V DC-IN 0.05A 50V DC-OUT 5-Pin I/O Module Relays Input Module 32VDC 18mA 4000Vrms Thru-Hole INPUT MODULE DC 18MA 24VDC I/O Module; G5; digital input DC; 24Vdc logic; 3-32Vdc load I/OModule,G5,digitalinputDC,24Vdclogic,3-32Vdcload G5 Digital Input DC 24 Vdc Logic 3-32 Vdc Load I/O Module |
| 分类 |
商业参数
| 交货时间 | 21 Days | 子类别 | I/O Module |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 欧盟RoHS | RoHS Not Applicable |
| 认证机构标志 | CE/CSA/TUV/UL | ||
电气参数
| 输入端 | 3to32VDC | 输入类型 | DC |
| 输入范围 | 3to32VDC | 输出类型 | DC |
| 释放时间 | 0.40ms | 开启时间 | 0.20ms |
| 额定电压 | 32 V | 输出电流 | 0.05 A |
| 关断延迟时间 | 0.40ms | 供电电压 | 24VDC |
| 通道数量 | 1 | 接收电流 | 18mA |
| 隔离电压 | 4000(RMS) V | 输入偏置电流 | 10mA |
| 最大额定电流 | 50mA | 最小输入电压 | 3 ~ 32VDC |
| 输出电压（最大） | 50(Min) V | 数字供电电压 | 24VDC (17 ~ 30VDC) |
| 输入偏置电流（最大） | 18 mA | ||
机械参数
| 颜色 | White | 安装类型 | Screw |
| 端子类型 | PC Pins | 安装样式 | PCB |
| 主要材料 | Control | ||
产品信息
| 类型 | DC | 样式 | G5 |
| 系列 | 70 | 产品特性 | Hold Down Screw, Status LED(s) |
| 技术 | Solid State | 主要用途 | Hold Down Screw, Status LED(s) |
| 制造商全称 | G5Series | 连接类型 | BoardMount |
| 模块/板类型 | Input Module | ||
环境参数
| 工作温度 | 100 | ||
相关型号

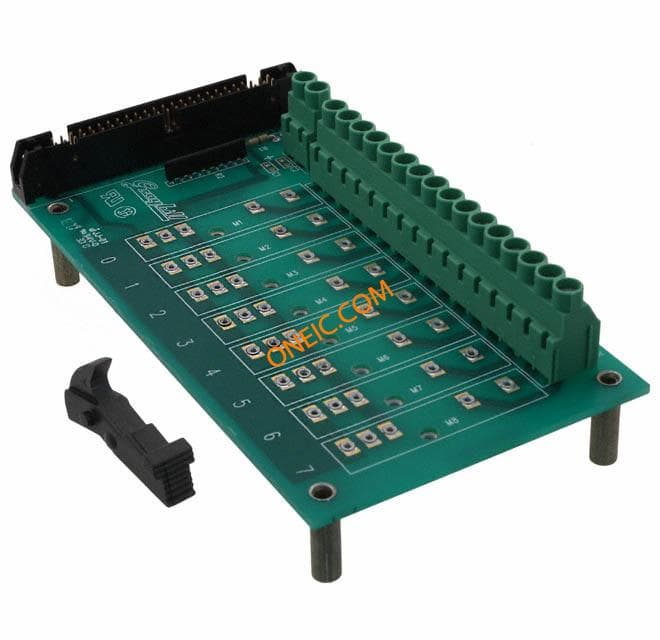

70GRCK8-HS
