点击放大查看

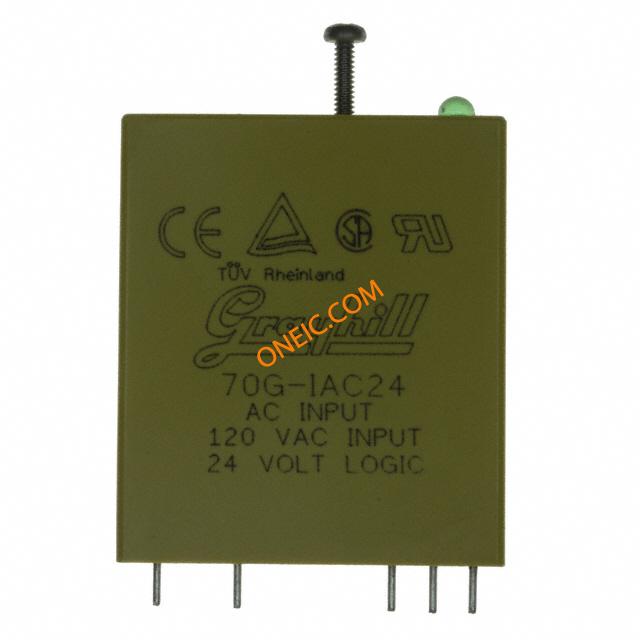

70G-IAC24
| 制造商 | Grayhill, Inc. |
| 描述 | OptoCoupler Transistor-Out 1-CH 5-Pin INPUT MODULE AC 8MA 24VDC Module; Input; 120; 8; 22 Kilohms (Nom.); 20 ms; 20 ms; -40 to ? degC Module;Input;120;8;22Kilohms(Nom.);20ms;20ms |
| 分类 |
商业参数
| 交货时间 | 21 Days | 子类别 | I/O Module |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 标准 | UL,CSA,CE,TUVCertified |
电气参数
| 输入端 | 90to140VAC | 输入类型 | Analog |
| 输入范围 | 90to140VAC | 开启时间 | 20ms |
| 输出电流 | 10mA | 关断延迟时间 | 20ms |
| 供电电压 | 24VDC | 通道数量 | 1 |
| 输入电阻 | 22Kiloohms(Nom.) | 隔离电压 | 4000VAC |
| 输入偏置电流 | 10mA | 最小输入电压 | 90 ~ 140VAC (120VAC Nom) |
| 数字供电电压 | 24VDC (17 ~ 30VDC) | 输入偏置电流（最大） | 8mA |
| 最大持续工作电压（MCOV） | 120 | ||
机械参数
| 颜色 | Yellow | 安装类型 | Screw |
| 安装样式 | PCB | 主要材料 | Control |
产品信息
| 类型 | AC | 样式 | G5 |
| 系列 | 70 | 产品特性 | Hold Down Screw, Status LED(s) |
| 制造商全称 | G5Series | 连接类型 | BoardMount |
| 模块/板类型 | Input | ||
环境参数
| 工作温度 | -40to+100°C | ||
