首页产品分类工业电源组件和继电器输入/输出继电器模块交流输入模块70-OAC5A

点击放大查看

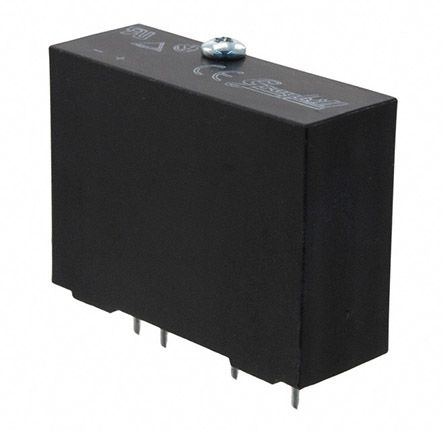

70-OAC5A

制造商	Grayhill, Inc.
描述	Digital I/O Modules 5-Pin I/O Module Relays Output Module Thru-Hole/Plug-In OUTPUT MODULE AC STD 16MA 5VDC Module; AC Output; Digital; 240 VAC; 16 mA; 1.0 W/A (Typ.); 4 mA (RMS) I/O MODULE Module,ACOutput;Digital;240VAC;16mA;1.0W/A(Typ.);4mA(RMS) 单极常开 PCB（印刷电路板）安装接口继电器模块, 0.03 → 3.5A, 10V dc
分类	工业电源组件和继电器输入/输出继电器模块交流输入模块

商业参数

交货时间	23 Days	子类别	I/O Module
标准包装数量	Bulk

合规参数

RoHS	Contains lead / RoHS non-compliant	欧盟RoHS	RoHS Not Applicable
海关税号	85364110	认证机构标志	CE/CSA/UL

电气参数

输出类型	AC	开启时间	8.33ms
负载电压	220VAC	输出电流	0.03 ~ 3.5A
关断延迟时间	8.33ms	输出数量	:1
模拟输入/输出	:1	最小输入电压	220VAC
输出电流（典型）	:0.03A	输入偏置电流（最大）	16mA

机械参数

颜色	Black	重量	0.032
安装类型	Screw	端子类型	PC Pins/Screw Terminal
安装样式	Through Hole/Plug-In	典型触点布局	:SPST-NO

产品信息

类型	AC	样式	Standard
系列	70	产品特性	Hold Down Screw
技术	Solid State	模块/板类型	Output Module
有铅工艺兼容	:No

环境参数

测试温度

:No

文档与媒体

PDF 文档

L-03-06.pdf

PDF 文档

70(L,G,M)-OAC

PDF 文档

L-03-06.pdf
