点击放大查看
70-IDC5B
| 制造商 | Grayhill, Inc. |
| 描述 | Relay SSR 18mA 32V DC-IN 0.05A 50V DC-OUT 5-Pin I/O Module Relays Input Module 32VDC 18mA 4000Vrms Thru-Hole INPUT MODULE DC 18MA 5VDC Module; DC Input; 3 to 32 VDC; 32 VDC (Max.); 18 mA (Max.); 5 VDC; 3 to 6 VDC Module,DCInput;3to32VDC;32VDC(Max.);18mA(Max.);5VDC;3to6VDC 70 Series 18 mA 3 to 32 V Standard Package DC Input I/O Module |
| 分类 |
商业参数
| 交货时间 | 21 Days | 子类别 | I/O Module |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Not Applicable | 认证机构 | CE/CSA/TUV/UL |
电气参数
| 输入端 | 3to32VDC | 输入类型 | Digital |
| 输入范围 | 3to32VDC | 输出类型 | DC |
| 释放时间 | 0.075ms | 开启时间 | 0.05ms |
| 隔离类型 | 4000Vrms | 调制器类型 | Input Module |
| 额定电压 | 32 V | 输出电流 | 0.05 A |
| 关断延迟时间 | 0.075ms | 供电电压 | 5VDC |
| 标称电压 | 5VDC | 通道数量 | 1 |
| 接收电流 | 18mA | 隔离电压 | 4000(RMS) V |
| 输入偏置电流 | 18mA | 最大额定电流 | 18mA |
| 最小输入电压 | 32VDC | 输出电压（最大） | 50(Min) V |
| 漏电流（最大） | 18mA | 逻辑电压 - VIL, VIH | 3to6VDC |
| 数字供电电压 | 5VDC (3 ~ 6VDC) | 输入偏置电流（最大） | 18 mA |
| 电源电流（禁用）（最大） | 50mA | ||
机械参数
| 颜色 | White | 安装类型 | Screw |
| 端子样式 | PC Pins | 主要材料 | Control |
产品信息
| 类型 | DC | 样式 | Standard |
| 系列 | 70 | 产品特性 | Hold Down Screw |
| 技术 | Solid State | 主要用途 | Hold Down Screw |
| 连接类型 | BoardMount | 装配配置 | Through Hole |
环境参数
| 防护等级 | DC | 工作温度 | 100 |
相关型号
70RCK16
grayhill
Rack 16 Channel 32-Pin Rack 16 Channel 32 Pin For Use With System 50 Style Controllers I/O MOUNTING BRD STANDARD 16POS Rack,16Channel;16;50-Pin;Screw;PanelMount;ULListed,CSACertified
70RCK16-HL
grayhill
I/O RACK, STANDARD, 16 CHANNEL, 50-PIN HEADER WITH EJECTOR L I/O MOUNTING BRD STANDARD 16POS I/ORack,Standard,16Channels,50PinHeader,EjectorLevers
70RCK8-HL
grayhill
I/O RACK, STANDARD, 8 CHANNEL, 50-PIN HEADER WITH EJECTOR LE Racks 8 Channel I/O MOUNTING BOARD STANDARD 8POS I/ORack,Standard,8Channels,50PinHeader,EjectorLevers 8 Channel Standard Style Screw Terminal Blocks I/O Mounting Board
70RCK4
grayhill
Racks 4 Channel I/O MOUNTING BOARD STANDARD 4POS Rack; 4; 50-Pin; Screw; DIN Rail Mount; UL Listed; CSA Certified I/O RACK Rack;4;50-Pin;Screw;DINRailMount;ULListed,CSACertified 4 Channel Standard Style Screw Terminal Blocks I/O Mounting Board
70RCK4R
grayhill
Racks 4 Channel Racks 4 Channel Use For Isolating And Coverting Signal Types To Standard Logic Voltages I/O MOUNTING BOARD STANDARD 4POS Rack; 4; 50-Pin; Screw; DIN Rail Mount; UL Listed; CSA Certified I/O RACK Rack;4;50-Pin;Screw;DINRailMount;ULListed,CSACertified
IDC5F
Crouzet
I/O Modules 0.6 I/O Module INPUT MODULE DC 68MA 5VDC I/O Module Relays Input Module 32VDC 34mA 4000VAC Thru-Hole/Plug-In I/O MODULE
70RCK24
grayhill
Racks 48-Pin Racks 48-Pin For Use With System 50 Style Controllers I/O MOUNTING BRD STANDARD 24POS Mounting Rack; 24; 50-Pin; Screw; DIN Rail Mount; UL Listed; CSA Certified MountingRack;24;50-Pin;Screw;DINRailMount;ULListed,CSACertified 24 Position 50 Pin Mounting Board
70RCK8
grayhill
Rack 8 Channel Racks 8 Channel For Use With System 50 Style Controllers I/O MOUNTING BOARD STANDARD 8POS Mounting Rack; 8; 50-Pin; Screw; DIN Rail Mount; UL Listed; CSA Certified MountingRack;8;50-Pin;Screw;DINRailMount;ULListed,CSACertified
70RCK24-HL
Grayhill Inc
I/O MOUNTING BRD STANDARD 24POS

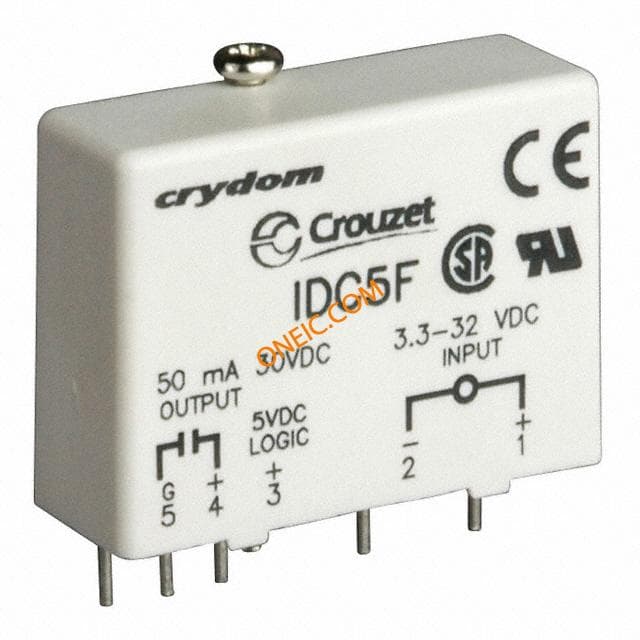

IDC5F
