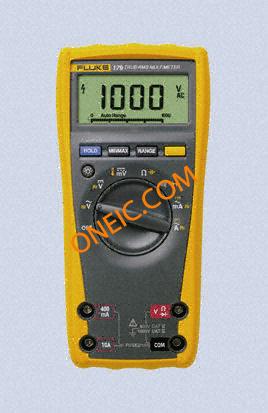

FLUKE-179/TPAK
| 制造商 | |
| 描述 | Digital Multimeters 179 WITH HANGING KIT MULTIMETER FLUKE-179 WITH TPAK Combo kit 179 toolpack Digital Multimeters With Large, Easy-To-Read Display Multimeter,Digital;10000uF(Max.);RS-232;-10todegC Measuring kit: Fluke kit
promotion 179 MULTIMETER & TOOLPAK COMBO KIT W/TOOLPAK MAGNETIC HANGING KIT |
| 分类 |
商业参数
| 产品 | Multimeters | 其他名称 | 1780000 |
| 零件号别名 | 1780000 | 产品类别 | Digital Multimeters |
| 标准包装数量 | 1 | 工厂包装数量 | 1 |
合规参数
| RoHS | Not Applicable | 标准 | ULListed,CSACertified,TUVApproved |
电气参数
| 量程选择 | Auto | 精度 | 0.09 % |
| 响应类型 | True RMS | 数据速率 | Yes |
| 频率 | 2 Hz to 50 kHz | 电阻 | 50MΩ |
| 电容 | 10000μF(Max.) | 显示类型 | LCD, Bar Graph |
| 电压范围 | 0.1 mV to 1000 V | 输出电流 | 10A |
| 电容范围 | 1 nF to 9999 uF | 精度 - 电压表；电流表 | Yes |
| 初始电阻（最小） | 0.1 Ohms to 50 MOhms | ||
机械参数
| 重量 | 1 lb | 电缆类型 | RS-232 |
产品信息
| 类型 | Digital (DMM) | 样式 | Handheld |
| 产品特性 | Backlight, Hold, Min/Max/Ave, Sleep | 功能 | Voltage, Current, Resistance, Capacitance, Temperature, Frequency |
| 包含附件 | Battery, Manual, Test Leads, Temperature Probe | 套件内容 | 179 True RMS Digital Multimeter, 9 V battery (installed), temperature probe 80BK, test lead TL76, user instructions manual and TPAK ToolPak Kit, ToolPak Magnetic Meter Hanging Kit |
| 制造商全称 | 170Series | 显示计数 | 6000 |
| 显示样式 | 6000Counts,LCD | 显示位数 | 3.75 |
| 测量参数 | Fluke kit | 单元数量 | 1 |
| 附加功能 | Continuity, Diode Test | 位数或字符数 | 3 1/2 Digit |
环境参数
| 工作温度 | -10to+50°C | ||
