XRP7704ILBTR-F
| 制造商 | Exar Corporation |
| 描述 | Soft Switching PWM Controllers 4Ch Digital Pwr Cntr w/LDO prog. thru I2C DC DC Cntrlr Quad-OUT DPWM DC to DC Controller/Step Down 6.5V to 20V Input 40-Pin TQFN EP T/R IC REG CTRLR BUCK PWM 40-TQFN Switching Controllers 4Ch Digital Pwr Cntr w/LDO prog. thru I2C |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 产品类别 | Soft Switching PWM Controllers | 标准包装数量 | 3,000 |
| 工厂包装数量 | 3000 | 标准封装名称 | QFN |
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| PWM类型 | Controller | 占空比 | 85% |
| Cuk转换器 | No | 降压转换器 | Yes |
| 隔离电源 | No | 额定电压 | 0.9 V to 5.1 V |
| 升压转换器 | No | 最大频率 | 1.5MHz |
| 输出电流 | 50 mA | 供电电流 | 50 mA |
| 供电电压 | 6.5 V to 20 V | 倍压转换器 | No |
| 反激转换器 | No | 输出数量 | Quad Output |
| 分频/倍频 | No | 反相转换器 | No |
| 开关频率 | 300 kHz to 1500 kHz | ||
机械参数
| 包装方式 | Reel | 引脚样式 | No Lead |
| 安装样式 | SMD/SMT | 封装形式 | TQFN-40 |
| 包装数量 | TQFN EP | 位数 | 40 |
产品信息
| 类型 | DPWM DC to DC Controller/Step Down | 系列 | XRP7704 |
| 制造商全称 | Exar | ||
环境参数
| 工作温度 | + 125 C | ||
相关型号
XRP7704EVB-XPM
Exar
Power Management IC Development Tools XRP7704/40 In-Socket Programmer Board EVALUATION BOARD ,ON BOARD FLASH IN-SOCKET PROG BRD VIA USB/GUI
¥1020.0000
详情
XRP7704EVB
Exar
Power Management IC Development Tools Eval Board for XRP7704 Series XRP7704 EVALUATION BOARD WITH EVAL BOARD FOR XRP7704 Development Kit, Power Management With Evaluation Board for XRP7704
¥1122.8160
详情

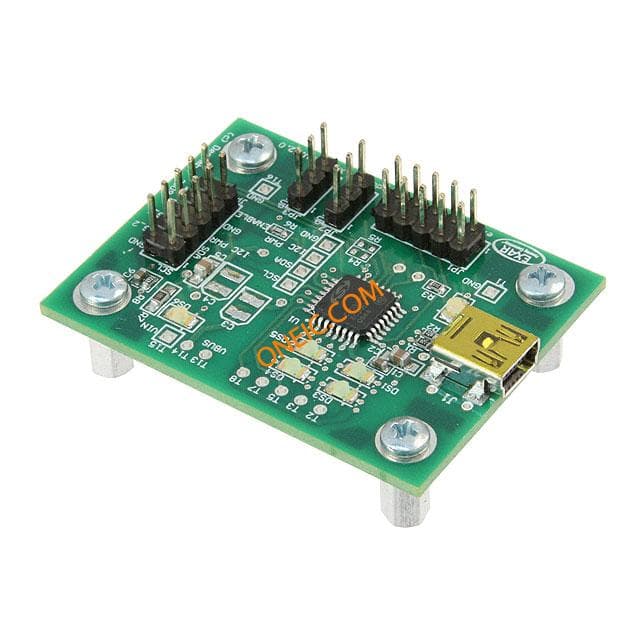

XRP77XXEVB-XCM
Exar
CONFIGURATION MODULE THAT IS DESIGNED TO ASSIST THE CUSTOMER IN THE PROGRAMMING AND BRING UP OF POWERXR DIGITAL PWM CONTROLLERS EVAL BOARD W/USB-I2C FOR XRP7704 Power Management IC Development Tools Configuration board for a
¥212.5000
详情
