点击放大查看

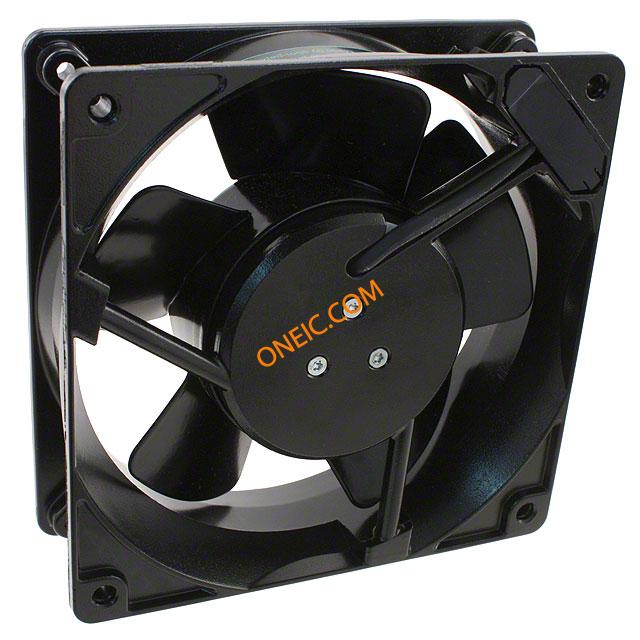

W2G110-AK43-31
| 制造商 | ebm-papst Mulfingen GmbH & Co. KG |
| 描述 | DC Fan Ball Bearing 24V 15W 140CFM 61dB Flange Mount FAN TUBEAXIAL 119X38MM 24VDC Fan;DC;Tubeaxial;24V;15W;140 CFM;61 dBA;Terminals;119mm x 38mm Fans AC Axial Fan AXIAL FAN, 119MM, 24VDC Fan;DC;24V;120x120x38mm;Sq;139.5CFM;11W;59dBA;Leadwires ebm-papst W2G110 系列 直流 轴流风扇, 4400rpm, 24 V 直流, 15W, 119 x 119 x 38mm |
| 分类 |
商业参数
| 产品 | Fans | 交货时间 | 65 Days |
| 子类别 | Blowers and Fans | 产品类别 | Fans |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 84145920 | ||
电气参数
| 噪声 | 61 dB(A) | 转速 | Counter Clockwise |
| 输入范围 | 16 to 28 | 功率（瓦） | 15.0W |
| 额定功率 | 15 W | 电压范围 | 16 ~ 28VDC |
| 额定电压 | 24VDC | 供电电压 | 24 V |
| 供电类型 | :Wire Leaded | ||
机械参数
| RPM | 4400 RPM | 尺寸 | 4.7x1.5(120x38)In.(mm) |
| 深度 | 119 | 高度 | 38 |
| 重量 | 1.1 lbs (499g) | 风量 | 140.0 CFM (3.96m³/min) |
| 风扇类型 | Tubeaxial | 材料（通用） | DiecastAluminum |
| 旋转范围 | CCW | 流量 (CFM) | :3.964m /min |
| 流量（SCFM） | :156cu.ft/min | 端接方式 | Terminals |
| 轴承类型 | Ball | 安装类型 | Flange Mount |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 总长度 | 119 |
| 刀片材料 | Steel | 框架材料 | Aluminum |
| 主要材料 | Fans | 尺寸/外形 | Square - 119mm L x 119mm H x 38mm W |
| 端接样式 | Wire Leads | 风扇附件类型 | 4.7x1.5(120x38)In.(mm) |
| 总体尺寸 | 4.7x4.7x1.5In. | ||
产品信息
| 类型 | Square | 系列 | W2G110 |
| 功能 | DC | 方向 | ExhaustoverStruts |
| 开关类型 | DC | 制造商全称 | W2G110Series |
| 配置 | Square | ||
环境参数
| 工作温度 | 60 | 自然散热热阻 | 139.5CFM |
