点击放大查看

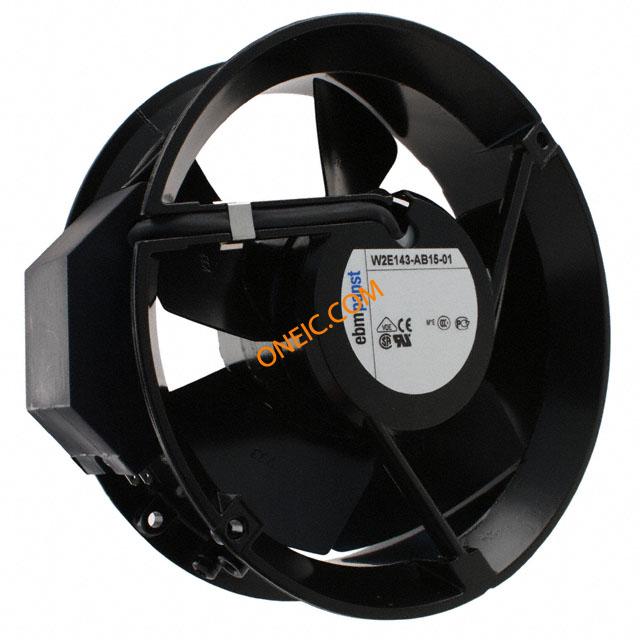

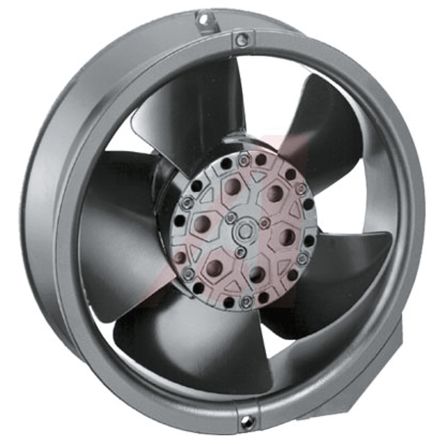

W2E143-AB15-01
| 制造商 | ebm-papst Mulfingen GmbH & Co. KG |
| 描述 | AC Fan Ball Bearing 115V 26W/29W 50Hz/60Hz 2850RPM/3300RPM 247.2CFM/294.3CFM 54dB/58dB Flange Mount FAN EXHAUST 172 X 51MM 115VAC Fans 172x51 115AC 294CFM 29W 3300RPM 58dBA BB FAN, 172X51MM, 115VAC Fan;AC;115V;172x51mm;Round;294.2CFM;29W;58dBA;Terminals ebm-papst W2E143 系列 AC 轴流风扇, 500m³/h, 115 V 交流, 29W, 171.5 x 51mm |
| 分类 |
商业参数
| 交货时间 | 95 Days | 子类别 | Blowers and Fans |
| 产品类别 | Fans | 标准包装数量 | 1 |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 海关税号 | 84145920 |
电气参数
| 噪声 | 58 dB(A) | 转速 | Counter Clockwise |
| 频率 | 60Hz | 最大功率 | 29W |
| 功率（瓦） | 29W | 额定功率 | 29 W |
| 额定电压 | 115VAC | 供电电压 | 115 V |
| 供电类型 | :Terminals | 最大额定电流 | 0.260A |
| 平均正向功率 | :29W | ||
机械参数
| RPM | 3300 RPM | 尺寸 | 6.8x2(172x51)In.(mm) |
| 深度 | :51mm | 高度 | 51 |
| 重量 | 2.1 lbs (952.5g) | 风量 | 294.2 CFM (8.33m³/min) |
| 直径 | 171.5 | 风扇类型 | Tubeaxial |
| 材料（通用） | :Sheet Steel | 旋转范围 | CCW |
| 厚度 | 2.01 | 流量 (CFM) | :8.24m³/min |
| 流量（SCFM） | :294.2cu.ft/min | 端接方式 | Terminals |
| 轴承类型 | Ball | 安装类型 | Flange Mount |
| 端子类型 | :2 x Flat Pin | 外径（标称值） | :172mm |
| 壳体材料 | Die-Cast Aluminum | 刀片材料 | Steel |
| 框架材料 | Aluminum | 主要材料 | Fans |
| 尺寸/外形 | Round - 172mm Dia x 51mm W | 外径 | :172mm |
| 风扇附件类型 | 6.8x2(172x51)In.(mm) | 总体尺寸 | 6.8x2In. |
| 外壳与棱镜材料 | :Die-cast aluminium | ||
产品信息
| 类型 | Round | 系列 | W2E143 |
| 功能 | AC | 方向 | ExhaustoverStruts |
| 开关类型 | AC | 制造商全称 | W2E143Series |
| 配置 | Round | ||
环境参数
| 工作温度 | -40 ~ 176°F (-40 ~ 80°C) | 自然散热热阻 | 294.2CFM |
| 结工作温度 | 75°C | ||
