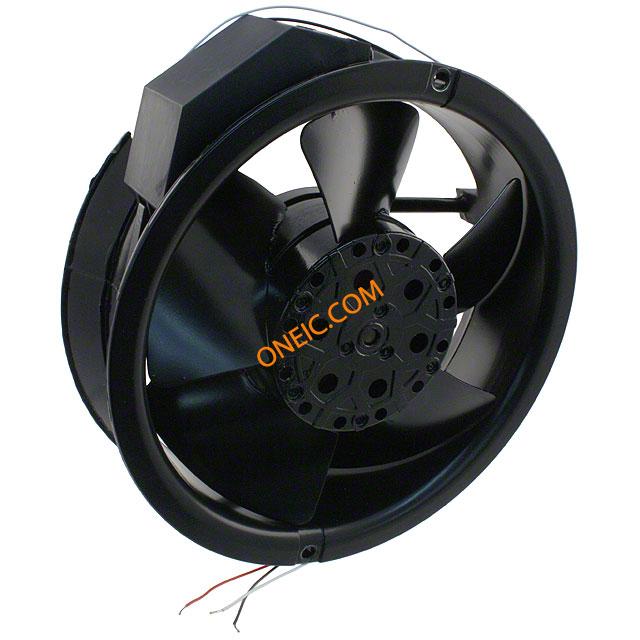

W2E143-AA09-88
| 制造商 | ebm-papst Mulfingen GmbH & Co. KG |
| 描述 | AC Fan Ball Bearing 230V 29W 50Hz/60Hz 260CFM 60dB Flange Mount FAN TUBEAXIAL 172X51MM 230VAC Blowers AC AXIAL FAN |
| 分类 |
商业参数
| 交货时间 | 112 Days | 子类别 | Blowers and Fans |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 噪声 | 60 dB(A) | 功率（瓦） | 29W |
| 额定电压 | 230VAC | ||
机械参数
| 重量 | 2.2 lbs (997.9g) | 风量 | 260.0 CFM (7.36m³/min) |
| 风扇类型 | Tubeaxial | 端接方式 | 2 Terminals |
| 轴承类型 | Ball | 刀片材料 | Steel |
| 框架材料 | Aluminum | 尺寸/外形 | Round - 172mm Dia x 51mm W |
环境参数
| 工作温度 | -40 ~ 176°F (-40 ~ 80°C) | ||
相关型号
4013-2-4039
ebm-papst
Thrml Mgmt Access Finger Guard Metal Fan Cords & Accessories Metal Finger Guard FINGER GUARD FOR W2E143 SERIES Guard for W2E143 Series Fan Accessories Metal Finger Guard GuardforW2E143Series
50950-2-4039
ebm-papst
Thrml Mgmt Access Finger Guard Metal Fan Cords & Accessories FINGER GUARD FINGER GRD W2E142,W2G130, W2S130 Fan Accessories FINGER GUARD MetalFingerGuard

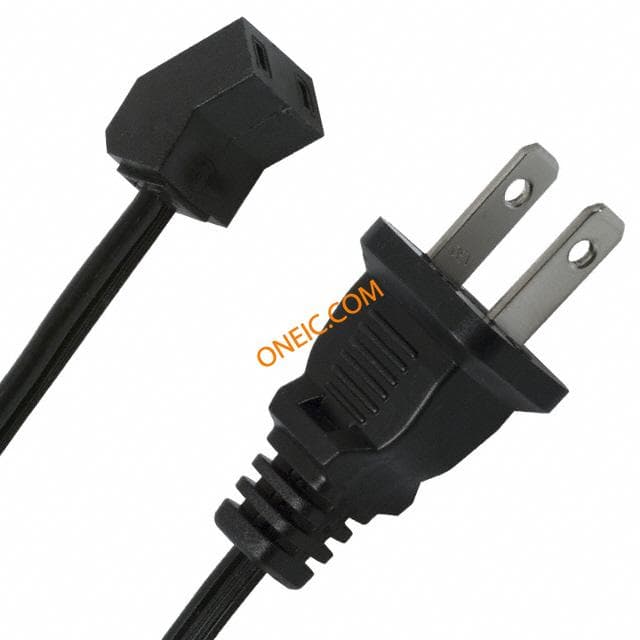

07145-SP072
Qualtek
AC Power Cords 72 45 DEGREE PLUG POWER CORD W/PLUG FAN 45DEG 72" Fan Cords & Accessories 72 45 DEGREE PLUG

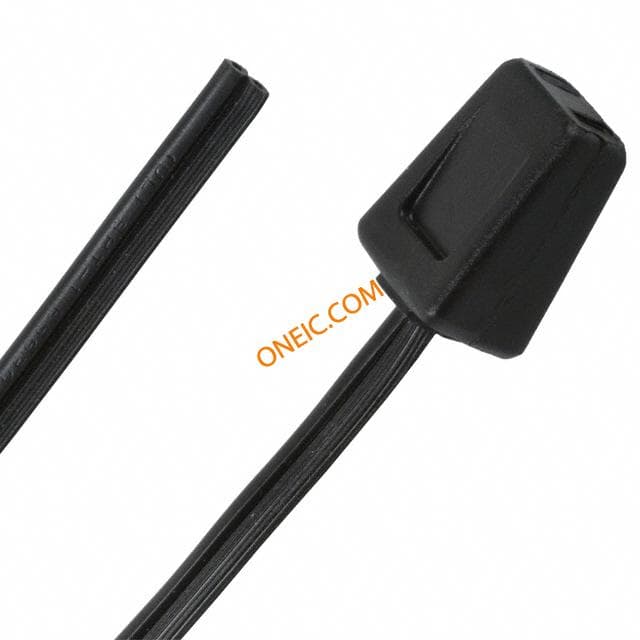

07100-72
Qualtek
AC Power Cords 72 FAN PWR CORD POWER CORD FAN STRAIGHT 72" Fan Cords & Accessories 72 FAN PWR CORD

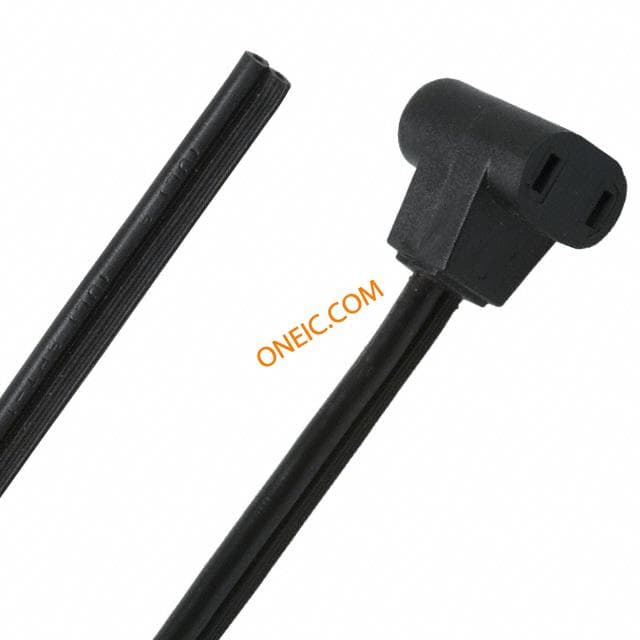

07199-24
Qualtek
AC Power Cords 24 FAN PWR CORD POWER CORD FAN T-TYPE 24" Fan Cord; 24 in.; T-Type; UL Listed; CSA Certified; Blunt Cut; 300 V; 7 A Fan Cords & Accessories 24 FAN PWR CORD Cable Assembly Cord 0.609m 18AWG 2 POS Power RCP FAN POWER CORD FanCord;24in.;T-Type;ULListed,CSACertified;BluntCut;300V;7A Fan Accessories Fan Power Cords Cord Length (mm): 610 Cord Length (in.): 24 Style: T-Type Cordage: SPT-1(18/2)
07100-SP036
Qualtek
AC Power Cords 36FAN PWR CORD POWER CORD W/PLUG STRAIGHT 36" Fan Cords & Accessories 36FAN PWR CORD
07199-80
Qualtek
AC Power Cords MOLDED FAN CRD FEM T 80 CORD POWER FAN T-TYPE 80" Fan Cords & Accessories MOLDED FAN CRD FEM T 80 80in,T-PlugStyle,FanPowerCord Fan Accessories Fan Power Cords Cord Length (mm): 2034 Cord Length (in.): 80 Style: T-Type Cordage: SPT-1(18/2)
LZ37
ebm-papst
Thrml Mgmt Access Finger Guard Metal Fan Cords & Accessories FINGER GUARD FINGER GUARD METAL F/6400 SERIES FINGER GUARD

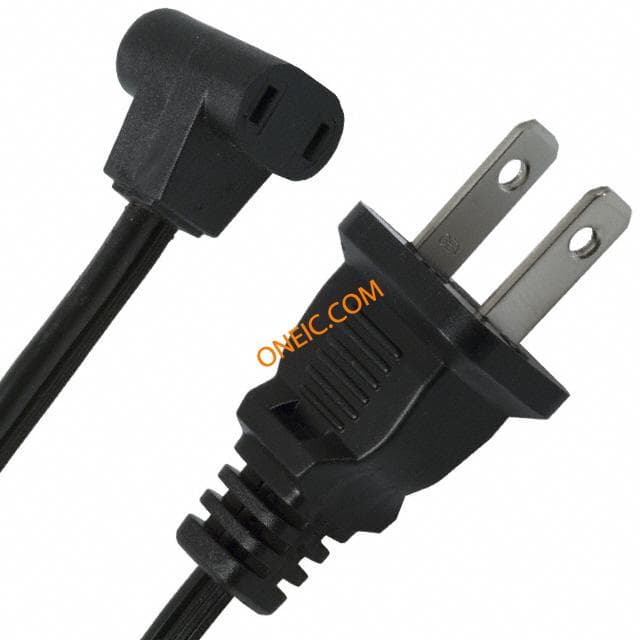

07199-SP072
Qualtek
POWER CORD W/PLUG FAN T-TYPE 72"
07100-40
Qualtek
POWER CORD FAN STRAIGHT 40" Cable Assembly Cord 1.016m 18AWG 2 POS Power RCP Fan Accessories Fan Power Cords Cord Length (mm): 1016 Cord Length (in.): 40 Style: Straight Cordage: SPT-1(18/2)
07199-40
Qualtek
POWER CORD FAN T-TYPE 40" Fan Accessories Fan Power Cords Cord Length (mm): 1016 Cord Length (in.): 40 Style: T-Type Cordage: SPT-1(18/2)
07100-60
Qualtek
POWER CORD FAN STRAIGHT 60" Fan Accessories Fan Power Cords Cord Length (mm): 1524 Cord Length (in.): 60 Style: Straight Cordage: SPT-1(18/2)
07145-24
ebm-papst
None
07145-36
ebm-papst
None
07199-24
Mechatronics
Cable Assembly Cord 0.61m 18AWG 2 POS Power F Fan Power Cord Cord Length: 24 inches / 610 mm Cord: 18 awg Rating: 105C, 300 volts Style: T-Type Cordage: SPT-1 (18/2)
07100-60
Mechatronics
Fan Power Cord Cord Length: 60 inches / 1,524 mm Cord: 18 awg Rating: 105C, 300 volts Style: Straight Cordage: SPT-1 (18/2)
