点击放大查看

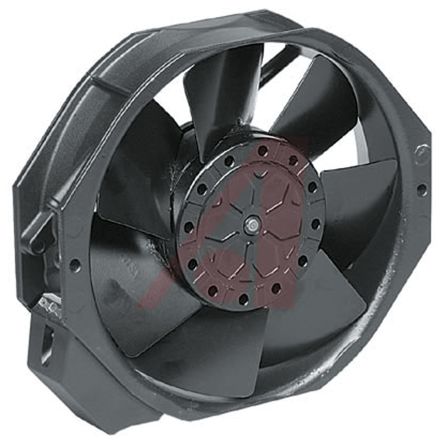

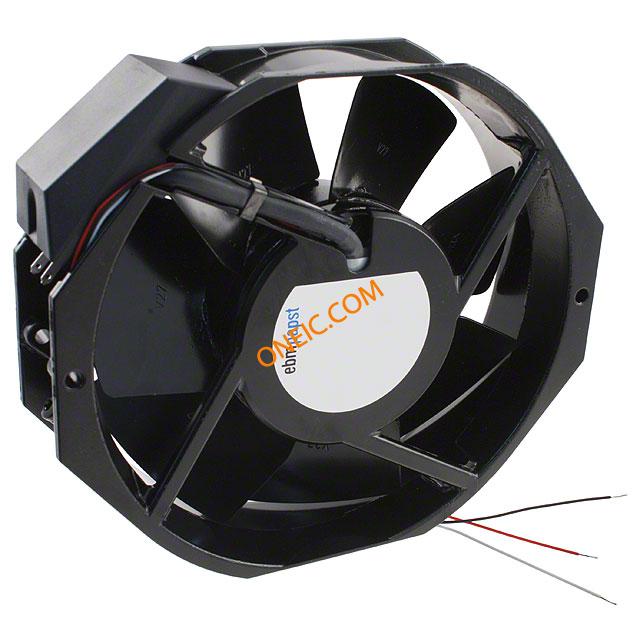

W2E142-BB01-87
| 制造商 | ebm-papst Mulfingen GmbH & Co. KG |
| 描述 | AC Fan Ball Bearing 230V 57W 50Hz/60Hz 230CFM 57dB Flange Mount FAN TUBEAXIAL 172X38MM 230VAC Fans 230V 57W 50Hz/60Hz 230CFM 57dB Fan;AC;230V;172x150x38mm;Obround;230CFM;28W;57dBA;Terminals ebm-papst W2E142 系列 AC 轴流风扇, 390m³/h, 230 V 交流, 25W, 150 x 172 x 38mm |
| 分类 |
商业参数
| 交货时间 | 112 Days | 子类别 | Blowers and Fans |
| 产品类别 | Fans | 标准包装数量 | 10 |
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 噪声 | 57 dB(A) | 频率 | 60Hz |
| 功率（瓦） | 28W | 额定功率 | 28W |
| 额定电压 | 230VAC | 供电电压 | 230 V 交流 |
| 最大额定电流 | 0.130A | 最大功耗 | 25W |
| 双电源电压（V+/-） | 交流 | ||
机械参数
| 尺寸 | 6.8x5.9x1.5(172x150x38)In.(mm) | 深度 | 38mm |
| 宽度 | 172mm | 高度 | 150mm |
| 重量 | 2 lbs (907.2g) | 风量 | 230.0 CFM (6.51m³/min) |
| 风扇类型 | Tubeaxial | 材料（通用） | DiecastAluminum |
| 旋转范围 | CCW | 流速 | 390m³/h |
| 端接方式 | 2 Terminals | 轴承类型 | Ball |
| 刀片材料 | Steel | 框架材料 | Aluminum |
| 主要材料 | Fans | 尺寸/外形 | Rectangular/Rounded - 172mm L x 150mm H x 38mm W |
| 外径 | 142mm | 风扇附件类型 | 6.8x5.9x1.5(172x150x38)In.(mm) |
| 总体尺寸 | 6.8x5.9x1.5In. | ||
产品信息
| 类型 | Obround | 系列 | W2E142 |
| 功能 | AC | 方向 | ExhaustoverStruts |
| 开关类型 | AC | 制造商全称 | W2E142Series |
| 配置 | Obround | 其他规格 | 向后 |
环境参数
| 工作温度 | -40 ~ 176°F (-40 ~ 80°C) | 自然散热热阻 | 230CFM |
| 结工作温度 | 70°C | ||
