点击放大查看

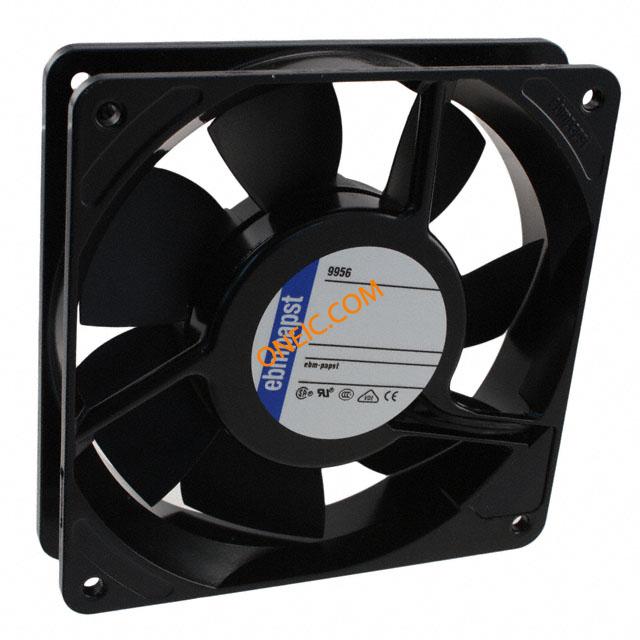

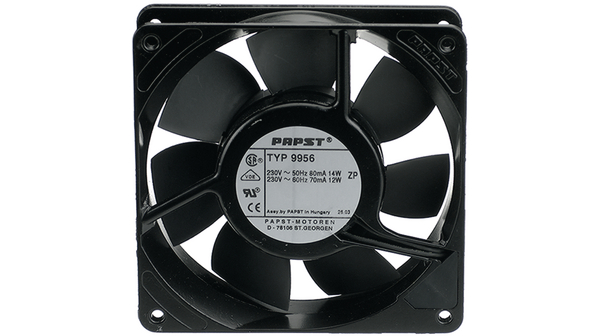

9956

制造商	ebm-papst Mulfingen GmbH & Co. KG
描述	AC Fan Ball Bearing 230V 14W 50Hz 2450RPM 68.9CFM 37dB Flange Mount FAN EXHAUST 119 X 25MM 230VAC Sleeve bearing axial fan,117cu.m/h230Vac Blowers 119x25 230V 68.9CFM 14W 2450RPM 37dBA BB AC Fan Ball 230V 14W 50Hz 2450RPM 68.9CFM 37dB Flange FAN, SLIM, 119MM, 230VAC Fan;AC;230V;120x120x25mm;Sq;68.9CFM;14W;37dBA;2450RPM;Terminals Axial fan AC 119 x 119 x 25.4 mm 117 m³/h 230 VAC 14 W, 9956, EBM-Papst ebm-papst 9900 系列 AC 轴流风扇, 117m³/h, 230 V 交流, 14W, 119 x 119 x 25mm
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

交货时间	112 Days	其他名称	381-1079
子类别	Blowers and Fans	产品类别	Blowers
标准包装数量	25

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	84145920
认证机构	:CSA, UL, VDE

电气参数

噪声	37 dB(A)	转速	Counter Clockwise
频率	:50Hz	电容	/
最大功率	14	量程（°/s）	:2450rpm
功率（瓦）	14.0W	额定功率	14 W
额定电压	230VAC	供电电压	230 V
供电类型	:Terminals	平均正向功率	:14W

机械参数

RPM	2450 RPM	尺寸	4.7x1(120x25)In.(mm)
深度	:25mm	宽度	:119mm
高度	25.4	重量	0.716 lb (324.77g)
风量	68.9 CFM (1.95m³/min)	风扇类型	Tubeaxial
材料（通用）	Metal	旋转范围	CCW
厚度	25	流量 (CFM)	:1.93m³/min
流量（SCFM）	:68.9cu.ft/min	端接方式	Terminals
轴承类型	Ball	高度（最大）	:119mm
安装类型	Flange Mount	壳体材料	Metal
总长度	119	刀片材料	Metal
框架材料	Metal	主要材料	Fans
尺寸/外形	Square - 119mm L x 119mm H x 25mm W	端接样式	Wire Leads
风扇附件类型	4.7x1(120x25)In.(mm)	面板开孔形状	:116mm
总体尺寸	4.7x4.7x1In.	安装孔直径	:4.5mm
安装面板厚度	:105mm

产品信息

类型	:Standard,119mm	系列	9900
功能	AC	方向	ExhaustoverStruts
开关类型	AC	制造商全称	9900Series
产品子类型	9956	配置	Square
制造国家	德国

环境参数

额定寿命	47500 hrs @ 40°C	温度	-40------------+75℃
高风量	117 m3/h	工作压力	48Pa
工作温度	-40 ~ 158°F (-40 ~ 70°C)	自然散热热阻	68.9CFM
结工作温度	:30000h
