点击放大查看

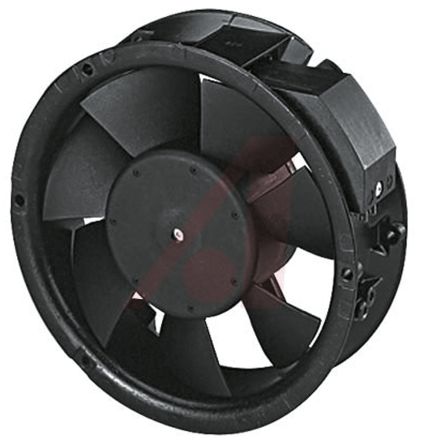

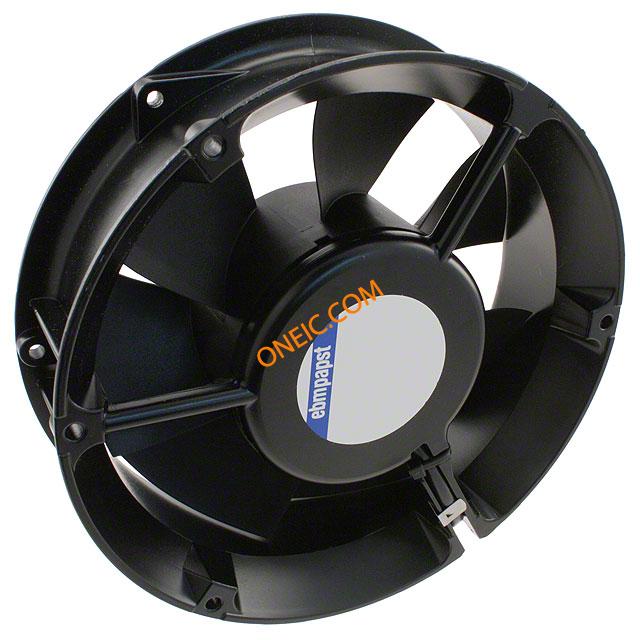

6248N
| 制造商 | ebm-papst Mulfingen GmbH & Co. KG |
| 描述 | DC Fan Ball Bearing 48V 17W 3400RPM 241.3CFM 55dB Flange Mount FAN TUBEAXIAL 171.5X50.8MM 48VDC AXIAL FAN, 172MM, 48VDC Fan;DC;48V;172x51mm;Round;241.3FM;17W;55dBA;Terminals Axial fan DC ø 172 x 51 mm 410 m³/h 48 VDC 17 W, 6248N, EBM-Papst ebm-papst 6200N 系列 直流 轴流风扇, 410m³/h, 48 V 直流, 17W, 171.5 (Dia.) x 50.8 (D)mm |
| 分类 |
商业参数
| 交货时间 | 112 Days | 其他名称 | 381-1045 |
| 子类别 | Blowers and Fans | 标准包装数量 | 25 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | ULListed,CSACertified,VDEApproved |
| 海关税号 | 84145920 | ||
电气参数
| 噪声 | 55 dB(A) | 最大功率 | 17W |
| 功率（瓦） | 17.0W | 额定功率 | 17W |
| 电压范围 | 28 ~ 60VDC | 额定电压 | 48VDC |
| 供电电压 | :48VDC | 供电类型 | :Terminals |
机械参数
| RPM | 3400 RPM | 尺寸 | 6.8x2(172x51)In.(mm) |
| 重量 | 1.8 lbs (816.5g) | 风量 | 241.3 CFM (6.83m³/min) |
| 风扇类型 | Tubeaxial | 材料（通用） | Metal |
| 旋转范围 | CCW | 流量 (CFM) | :6.824m /min |
| 流量（SCFM） | :241cu.ft/min | 端接方式 | 2 Terminals |
| 轴承类型 | Ball | 刀片材料 | Polyamide (PA), Fiberglass Reinforced |
| 框架材料 | Metal | 主要材料 | Fans |
| 尺寸/外形 | Round - 171.5mm Dia x 50.8mm W | 风扇附件类型 | 6.8x2(172x51)In.(mm) |
| 总体尺寸 | 6.8x2In. | ||
产品信息
| 类型 | Round | 系列 | :6200N |
| 方向 | ExhaustoverStruts | 开关类型 | DC |
| 制造商全称 | 6200NSeries | 配置 | Round |
环境参数
| 额定寿命 | 75000 hrs @ 40°C | 工作温度 | 14 ~ 162°F (-10 ~ 72°C) |
| 自然散热热阻 | 241.3CFM | 结工作温度 | 72°C |
