点击放大查看

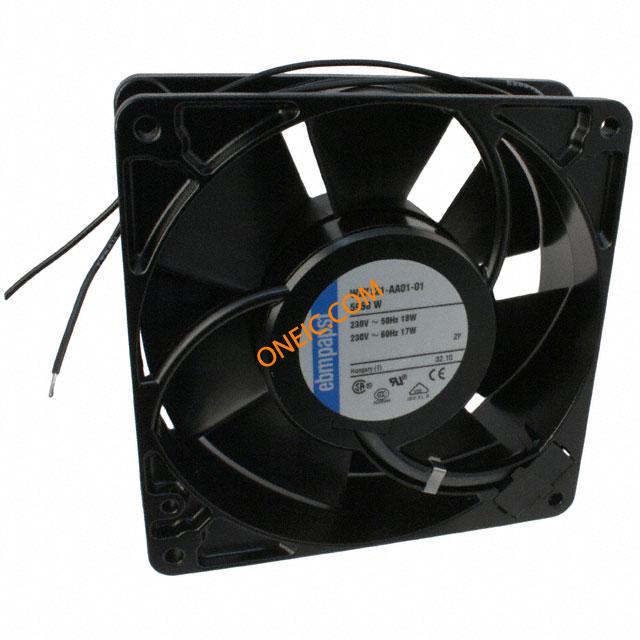

5958W
| 制造商 | ebm-papst Mulfingen GmbH & Co. KG |
| 描述 | 230V 50HZ 106CFM BB UCV FAN TUBEAXIAL 127X38MM 230VAC Fans 127x38mm 106CFM 18W 230VAC 310mm Leads TUBEAXIAL FAN FAN, 127X127X38MM, 230VAC |
| 分类 |
商业参数
| 产品 | Fans | 标准包装规格 | 25 |
| 产品类别 | Fans | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85366910 | ||
电气参数
| 噪声 | 47 dB(A) | 转速 | 2750 RPM |
| 功率（瓦） | 17.0W | 额定功率 | 18 W |
| 额定电压 | 230VAC | 最大频率 | :60Hz |
| 最低频率 | :50Hz | 供电电压 | 230 V |
| 供电类型 | :Wire Leaded | 平均正向功率 | :17W |
机械参数
| 深度 | :38mm | 宽度 | :127mm |
| 重量 | 1.3 lbs (589.7g) | 风量 | 121.2 CFM (3.43m³/min) |
| 风扇类型 | Tubeaxial | 流量 (CFM) | :3.39m³/min |
| 流量（SCFM） | :121.2cu.ft/min | 端接方式 | 2 Wire Leads |
| 轴承类型 | Ball | 高度（最大） | :127mm |
| 端子类型 | :Flying Lead | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 刀片材料 | Polyamide (PA), Fiberglass Reinforced | 框架材料 | Metal |
| 尺寸/外形 | Square - 127mm L x 127mm H x 38mm W | 安装面板厚度 | :113.5mm |
产品信息
| 系列 | 5900 | 功能 | AC |
环境参数
| 工作温度 | :75°C | ||
