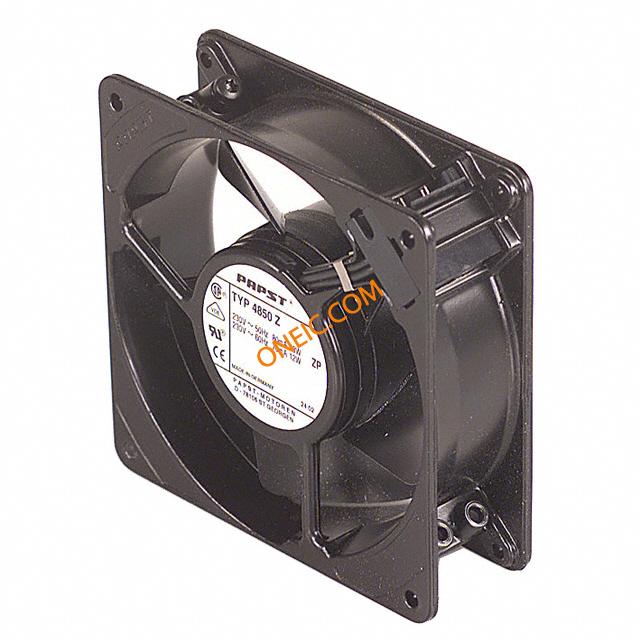

4850Z
| 制造商 | ebm-papst Mulfingen GmbH & Co. KG |
| 描述 | AC Fan Sintec-Sleeve Bearing 230V 13W 50Hz 1700RPM 58.9CFM 26dB Flange Mount FAN 119 X 38MM 230VAC Blowers ACFAN SLEEVE BEARING 230V 26DB FLNG MT Axial fan AC 119 x 119 x 38 mm 100 m³/h 230 VAC 13 W, 4850Z, EBM-Papst |
| 分类 |
商业参数
| 交货时间 | 112 Days | 其他名称 | 381-1037 |
| 子类别 | Blowers and Fans | 标准包装数量 | 25 |
合规参数
| RoHS | Vendor undefined / Vendor undefined | ||
电气参数
| 噪声 | 26 dB(A) | 转速 | 1700 RPM |
| 电压 | 230 VAC | 频率 | 50 Hz |
| 最大功率 | 13.0W | 功率（瓦） | 13.0W |
| 额定电压 | 230VAC | 平均正向功率 | 13 W |
| 噪声系数（dB典型值 @ f） | 26 dB(A) | ||
机械参数
| RPM | 1700 RPM | 尺寸 | Square - 119mm L x 119mm H x 38mm W |
| 重量 | 1.2 lbs (544.3g) | 风量 | 58.9 CFM (1.66m³/min) |
| 风扇类型 | Tubeaxial | 流速 | 100 |
| 端接方式 | 2 Terminals | 轴承类型 | Sintec |
| 刀片材料 | Metal | 框架材料 | Metal |
| 尺寸/外形 | Square - 119mm L x 119mm H x 38mm W | ||
产品信息
| 系列 | 4000Z | ||
环境参数
| 额定寿命 | 50000 hrs @ 40°C | 工作温度 | 14 ~ 149°F (-10 ~ 65°C) |
文档与媒体
