4656X

制造商	ebm-papst Mulfingen GmbH & Co. KG

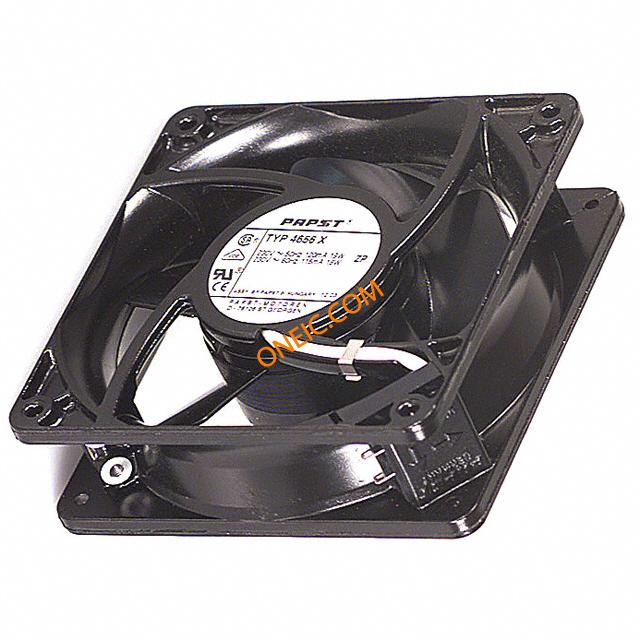

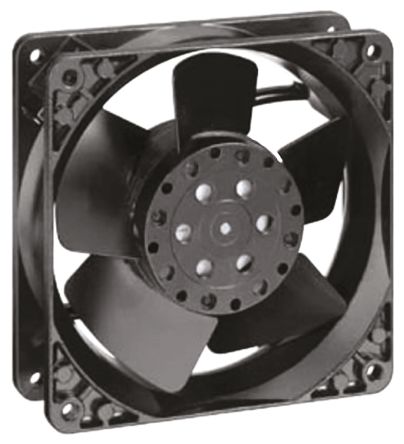

描述	AC Fan Ball Bearing 230V 18W 50Hz/60Hz 106CFM 51dB Flange Mount FAN INTAKE 119 X 38MM 230VAC Blowers 119x38 230AC 106CFM 18W 2650RPM 51dBA BB FAN, 119X119X38MM, 230VAC Fan;AC;230V;120x120x38mm;Sq;106CFM;18W;51dBA;Leadwires ebm-papst 4656 系列 AC 轴流风扇, 160m³/h, 230 V 交流, 18W, 119 x 119 x 38mm
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

交货时间	75 Days	其他名称	381-1095
子类别	Blowers and Fans	产品类别	Blowers
标准包装数量	25

合规参数

RoHS	Lead free / RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Compliant	海关税号	84145920

电气参数

噪声	51 dB(A)	转速	Clockwise
频率	:60Hz	功率（瓦）	18.0W
额定功率	18 W	额定电压	230VAC
供电电压	230 V	供电类型	:Terminals
最小输入电压	230VAC	平均正向功率	:18W

机械参数

尺寸	4.7x1.5(120x38)In.(mm)	深度	:38mm
宽度	:119mm	高度	38
重量	1.2 lbs (544.3g)	风量	106.0 CFM (3.00m³/min)
风扇类型	Tubeaxial	材料（通用）	Metal
旋转范围	CW	流量 (CFM)	:2.97m³/min
流量（SCFM）	:106cu.ft/min	端接方式	Terminals
轴承类型	Ball	高度（最大）	:119mm
安装类型	Flange Mount	壳体材料	Metal
总长度	119	刀片材料	Metal
框架材料	Metal	主要材料	Fans
尺寸/外形	Square - 119mm L x 119mm H x 38mm W	端接样式	Wire Leads
风扇附件类型	4.7x1.5(120x38)In.(mm)	总体尺寸	4.7x4.7x1.5In.

产品信息

类型	Square	系列	4600X
功能	AC	方向	IntakeoverStruts
开关类型	AC	制造商全称	4600XSeries
配置	Square

环境参数

工作温度	:90°C	自然散热热阻	106CFM
结工作温度	90°C

文档与媒体

PDF 文档

4600X Series, Tubeaxial

PDF 文档

81092.pdf

PDF 文档

4650X.pdf

PDF 文档

4650X.PDF
