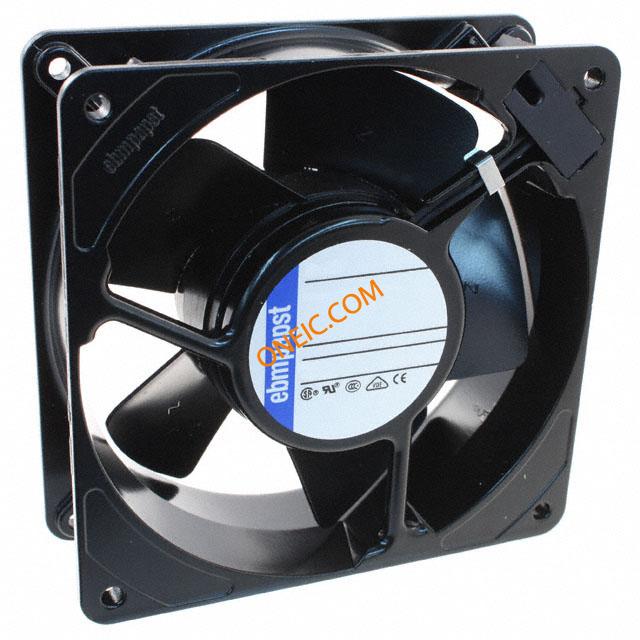

4606Z
| 制造商 | ebm-papst Mulfingen GmbH & Co. KG |
| 描述 | AC Fan Ball Bearing 115V 18W 60Hz 3100RPM 105.9CFM 45dB Flange Mount FAN 119 X 38MM 115VAC Blowers 119x38 115V 106CFM 18W 3100RPM 45dBA BB FAN, 119X119X38MM, 115VAC Fan;AC;115V;120x120x38mm;Sq;105.9CFM;18W;45dBA;3100RPM;Terminals ebm-papst 4000Z 系列 AC 轴流风扇, 180m³/h, 115 V, 18W, 119 x 119 x 38mm |
| 分类 |
商业参数
| 交货时间 | 112 Days | 其他名称 | 381-1031 |
| 子类别 | Blowers and Fans | 产品类别 | Blowers |
| 标准包装数量 | 25 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 欧盟RoHS | Compliant | 标准 | ULListed,CSACertified,VDEApproved |
| 海关税号 | 84145920 | ||
电气参数
| 噪声 | 45 dB(A) | 转速 | Clockwise |
| 频率 | :60Hz | 最大功率 | 18W |
| 量程（°/s） | :3100rpm | 功率（瓦） | 18.0W |
| 额定功率 | 18 W | 额定电压 | 115VAC |
| 供电电压 | 115 V | 供电类型 | :Terminals |
| 平均正向功率 | :18W | ||
机械参数
| RPM | 3100 RPM | 尺寸 | 4.7x1.5(120x38)In.(mm) |
| 深度 | :38mm | 宽度 | :119mm |
| 高度 | 38 | 重量 | 1.2 lbs (544.3g) |
| 风量 | 105.9 CFM (3.00m³/min) | 风扇类型 | Tubeaxial |
| 材料（通用） | Metal | 旋转范围 | CW |
| 厚度 | 38mm | 流量 (CFM) | :2.97m³/min |
| 流量（SCFM） | :105.9cu.ft/min | 端接方式 | Terminals |
| 轴承类型 | Ball | 高度（最大） | :119mm |
| 安装类型 | Flange Mount | 壳体材料 | Metal |
| 总长度 | 119 | 刀片材料 | Metal |
| 框架材料 | Metal | 主要材料 | Fans |
| 尺寸/外形 | Square - 119mm L x 119mm H x 38mm W | 端接样式 | Wire Leads |
| 风扇附件类型 | 4.7x1.5(120x38)In.(mm) | 总体尺寸 | 4.7x4.7x1.5In. |
产品信息
| 类型 | Square | 系列 | 4000Z |
| 功能 | AC | 方向 | ExhaustoverStruts |
| 开关类型 | AC | 制造商全称 | 4000ZSeries |
| 配置 | Square | ||
环境参数
| 额定寿命 | 40000 hrs @ 40°C | 工作温度 | -40 ~ 185°F (-40 ~ 85°C) |
| 自然散热热阻 | 105.9CFM | 结工作温度 | 85°C |
