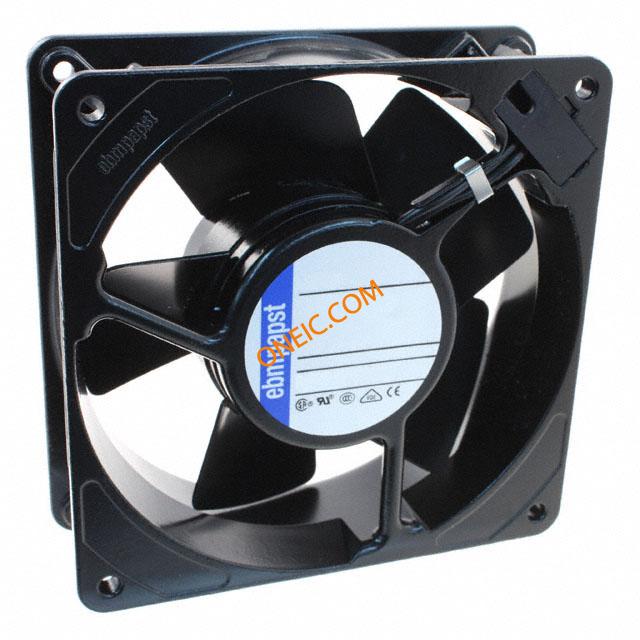

4530Z

制造商	ebm-papst Mulfingen GmbH & Co. KG
描述	AC Fan Sintec-Sleeve Bearing 115V 12W 60Hz 2000RPM 70.6CFM 32dB Flange Mount FAN 119 X 38MM 115VAC Fans 119x38 115V 70.6CFM 12W 2000RPM 32dBA SB Fan;AC;115V;120x120x38mm;Sq;70.6CFM;12W;32dBA;2000RPM;Terminals
分类	硬件与散热解决方案直流风扇鼓风机

对参数有疑问？问 AI 助手

商业参数

产品	Fans	交货时间	112 Days
其他名称	381-1026	子类别	Blowers and Fans
产品类别	Fans	标准包装数量	25

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
标准	ULListed,CSACertified,VDEApproved

电气参数

噪声	32 dB(A)	转速	Clockwise
频率	60Hz	最大功率	12
功率（瓦）	12.0W	额定功率	12 W
额定电压	115VAC	供电电压	115 V

机械参数

RPM	2000 RPM	尺寸	4.7x1.5(120x38)In.(mm)
深度	119	高度	38
重量	1.2 lbs (544.3g)	风量	70.6 CFM (2.00m³/min)
风扇类型	Tubeaxial	材料（通用）	Metal
旋转范围	CW	厚度	38mm
端接方式	Leads	轴承类型	Sintec-Sleeve
标称内径	2000	安装类型	Flange Mount
壳体材料	Metal	总长度	119
刀片材料	Metal	框架材料	Metal
主要材料	Fans	尺寸/外形	Square - 119mm L x 119mm H x 38mm W
风扇附件类型	4.7x1.5(120x38)In.(mm)	总体尺寸	4.7x4.7x1.5In.

产品信息

类型	Square	系列	4000Z
功能	AC	方向	ExhaustoverStruts
开关类型	AC	制造商全称	4000ZSeries
配置	Square

环境参数

额定寿命	52500 hrs @ 40°C	工作温度	14 ~ 167°F (-10 ~ 75°C)
自然散热热阻	70.6CFM	结工作温度	70°C

文档与媒体

PDF 文档

Accessories Quick Reference

PDF 文档

AC-axial-fan-4530Z-ENG.pdf

PDF 文档

4530Z

PDF 文档

6146.pdf

PDF 文档

4000Z.PDF
