点击放大查看

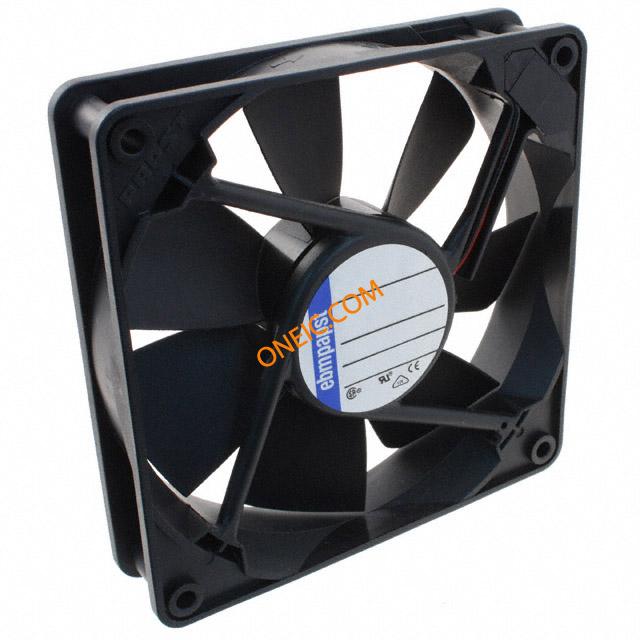

4484FD
| 制造商 | ebm-papst Mulfingen GmbH & Co. KG |
| 描述 | DC Fan Ball Bearing 24V 5W 100CFM 43dB Flange Mount FAN TUBEAXIAL 119X25.4MM 24VDC Fans DC FAN BALL BEARING 24V 43DB FLNG MT |
| 分类 |
商业参数
| 产品 | Fans | 交货时间 | 112 Days |
| 子类别 | Blowers and Fans | 产品类别 | Fans |
| 标准包装数量 | 25 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | ||
电气参数
| 噪声 | 43 dB(A) | 转速 | Counter Clockwise |
| 频率 | Not Required Hz | 输入范围 | 12V to 28V |
| 噪声系数 | 43 dB | 功率（瓦） | 5.00W |
| 额定功率 | 5 W | 电压范围 | 12 ~ 28VDC |
| 额定电压 | 24VDC | 供电电压 | 24 V |
机械参数
| 深度 | 119 mm | 高度 | 25.4 mm |
| 重量 | 0.38 lb (172.37g) | 风量 | 100.0 CFM (2.80m³/min) |
| 直径 | Not Required mm | 风扇类型 | Tubeaxial |
| 端接方式 | Terminals Ribs | 轴承类型 | Ball |
| 安装类型 | Flange Mount | 安装样式 | Flange |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 总长度 | 119 mm |
| 刀片材料 | Polyamide (PA), Fiberglass Reinforced | 框架材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| 尺寸/外形 | Square - 119mm L x 119mm H x 25.4mm W | 端接样式 | Wire Leads |
产品信息
| 类型 | DC Fan | 功能 | DC |
环境参数
| 工作温度 | 75 | 结工作温度 | 75C |
