点击放大查看

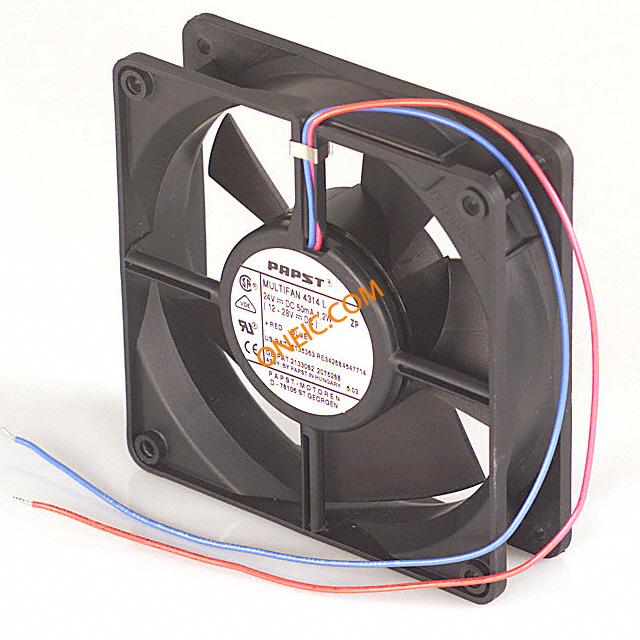

4314L
| 制造商 | ebm-papst Mulfingen GmbH & Co. KG |
| 描述 | DC Fan Ball Bearing 24V 1.2W 55.9CFM 30dB Flange Mount FAN 119 X 32MM 24VDC Ball bearing axial fan,95cu.m/h 24Vdc Fans 119x32 24DC 55.9CFM 1.2W 1550RPM 30dB BB FAN, 119MM, 24VDC ebm-papst 4314 系列 直流 轴流风扇, 95m³/h, 24 V 直流, 1.2W, 119 x 119 x 32mm |
| 分类 |
商业参数
| 交货时间 | 112 Days | 其他名称 | 381-1022 |
| 子类别 | Blowers and Fans | 产品类别 | Fans |
| 标准包装数量 | 25 | ||
合规参数
| RoHS | Vendor undefined / Vendor undefined | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 84145920 | 认证机构 | :CSA, UL |
电气参数
| 噪声 | 30 dB(A) | 转速 | 1550 RPM |
| 功率（瓦） | 1.20W | 额定功率 | 1.2 W |
| 电压范围 | 12 ~ 28VDC | 额定电压 | 24VDC |
| 供电电压 | 24 V | 供电类型 | :Wire Leaded |
| 最小输入电压 | :12V | 平均正向功率 | :1.2W |
| 最大持续工作电压（MCOV） | :28V | ||
机械参数
| RPM | 1550 RPM | 深度 | :32mm |
| 宽度 | :119mm | 重量 | 0.485 lb (219.99g) |
| 风量 | 56.0 CFM (1.58m³/min) | 风扇类型 | Tubeaxial |
| 流量 (CFM) | :95m³/h | 流量（SCFM） | :55.9cu.ft/min |
| 端接方式 | 2 Wire Leads | 轴承类型 | Ball |
| 高度（最大） | :119mm | 壳体材料 | Polybutylene Terephthalate (PBT) |
| 刀片材料 | Polyamide (PA), Fiberglass Reinforced | 框架材料 | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| 尺寸/外形 | Square - 119mm L x 119mm H x 32mm W | 端接样式 | Wire Leads |
| 面板开孔形状 | :116mm | 安装孔直径 | :4.5mm |
| 安装面板厚度 | :82.5mm | ||
产品信息
| 类型 | :Super Low Noise, 119mm | 系列 | 4300 |
| 功能 | DC | ||
环境参数
| 额定寿命 | 80000 hrs @ 40°C | 工作温度 | -4 ~ 167°F (-20 ~ 75°C) |
| 结工作温度 | :80000h | ||
文档与媒体
相关型号
LZ30-4
ebm-papst
Thrml Mgmt Access Finger Guard 119mm Steel Wire Fan Cords & Accessories Finger Guard Steel FAN GUARD 119MM METAL Fan Accessories Finger Guard Steel Guard,Metal,For4000/9000SeriesAxialFans 119mm风扇 金属，钢 手指防护罩, 119 x 119mm
LZ30
ebm-papst
Thrml Mgmt Access Finger Guard Metal Fan Cords & Accessories MTL FINGER GRD 4000/9000 SC120-W5 FAN GUARD 119MM METAL Fan Accessories MTL FINGER GRD 4000/9000 SC120-W5 Thrml Mgmt Access Metal Finger Guard WELDED,NICKELCHROME-PLATEDSTEELWIREFORSERIES2500S,4000AND5500S 119mm风扇 金属，钢 手指防护罩, 115 (Dia)mm
LZ40/60
ebm-papst
Fan Cords & Accessories KIT SCREEN 4000, 9000 SER KIT SCREEN FOR 4000, 9000 SER Fan Accessories KIT SCREEN 4000, 9000 SER
LZ60
ebm-papst
Thrml Mgmt Access Fan Filter Screen Black Fan Cords & Accessories Fan Filter FILTER 119MM WIRE MESH METAL Aluminium Fan Mounted Fan Filter for 119mm Fan Fan Accessories Fan Filter FILTER, METAL MESH, FOR LZ40N Fan,Filterfor4000&9000SeriesEBMFans ebm-papst 铝制 扇形过滤器, 用于119mm风扇
LZ40N
ebm-papst
Thrml Mgmt Access Fan Filter Screen Black Fan Cords & Accessories Screen Kit Fits 4000/9000 FRAME PLASTIC FOR 4000, 9000 SER Glass Fibre Reinforced Polymer Fan Mounted Finger Guard Fan Accessories Screen Kit Fits 4000/9000 FILTER, DUST, METAL MESH Fan,Screen,BlackFiberglassFramew/InsertedAlumMesh,Usew/4000&9000Series ebm-papst 玻璃纤维强化聚酯制 指形护罩
LZ260
ebm-papst
Thrml Mgmt Access Spacer Plastic Fan Cords & Accessories Plastic Spacer For 3300/4300/8300 COMPRESS STRUT 3300,4300,8300SER Accessory; Fibreglass Reinforced Plastic Fan Accessories Plastic Spacer For 3300/4300/8300 Accessory;FibreglassReinforcedPlastic
LZ30-6
ebm-papst
Thrml Mgmt Access Finger Guard Plastic Fan Cords & Accessories GUARD FINGR 4100N SERIES LZ30-6 FAN GUARD 119MM PLASTIC Fan Accessories GUARD FINGR 4100N SERIES LZ30-6 FiberglassReinforcedPlastic(PPO)FingerGuard 119mm风扇 塑料 手指防护罩, 119 x 119mm

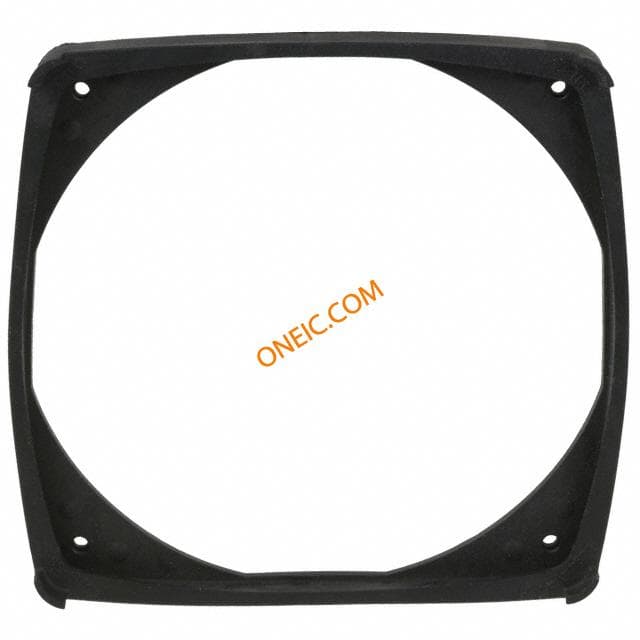

QLM-119-50-10
